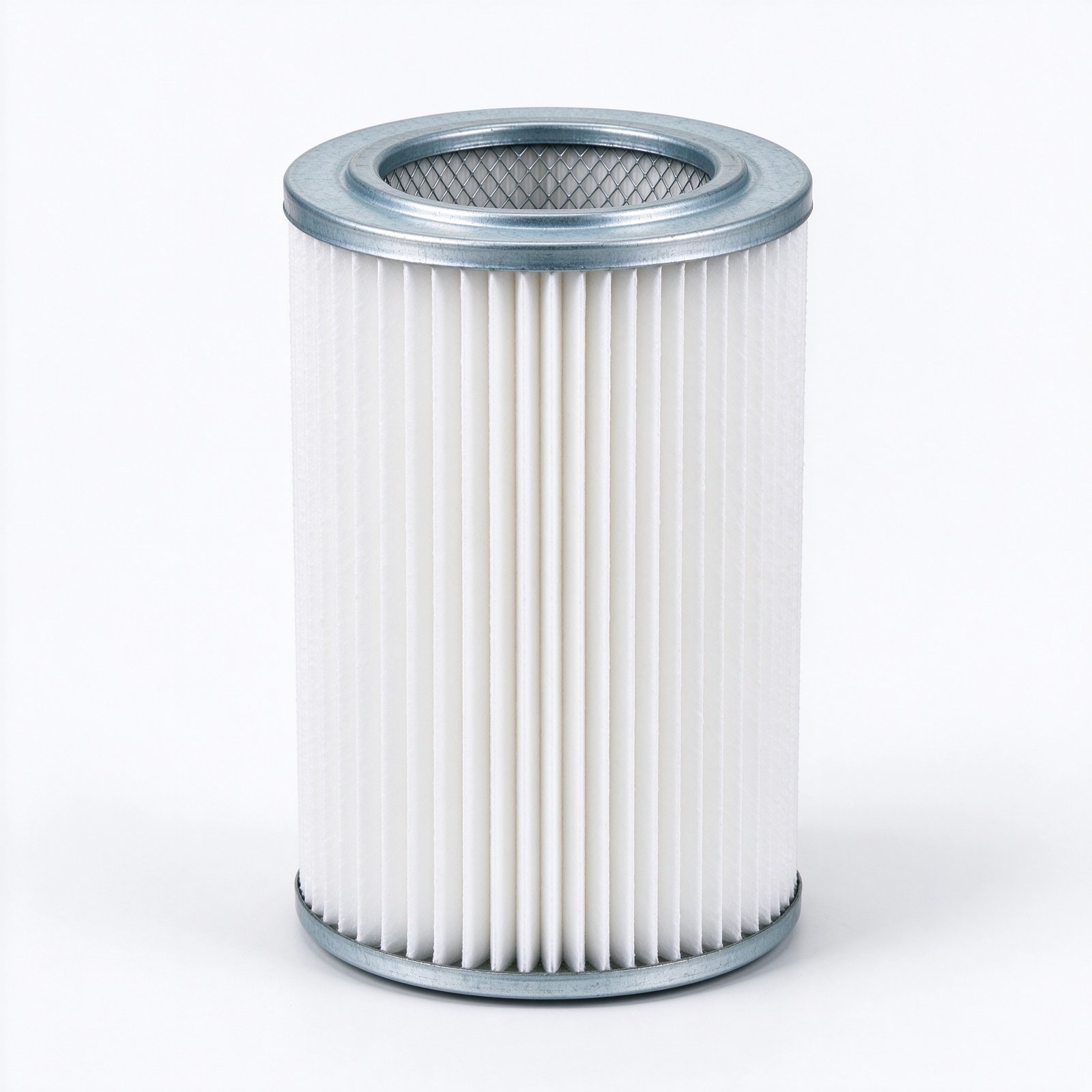

Ingersoll Rand Replacement Air Compressor Intake Filter Element
The WIRES Ingersoll Rand replacement intake filter protects the compressor’s air-end by removing dust, pollen, rust particles, and other atmospheric contaminants before they enter the screw chamber. Engineered as a direct cross-reference replacement for Ingersoll Rand SSR, UP, UP6, R-series, and N-series rotary screw compressors, the cartridge uses high-dirt-holding cellulose media pleated on a rigid wire support, sealed between galvanized-steel end caps. A clean intake reduces wear on the air-end, prevents scoring of the screw rotors, maintains volumetric efficiency, and extends the service interval of downstream oil and separator elements.
Key Features
- Direct-fit replacement for Ingersoll Rand SSR M55/M75/M110, UP5/UP6, R-series, and N-series intake filter housings.
- Wet-strength cellulose media with uniformly spaced pleats provides high dust-holding capacity and low restriction.
- Galvanized-steel end caps with integrated foam gasket ensure positive sealing against unfiltered air bypass.
- Inner expanded-metal support core prevents media collapse under high vacuum or pulsating intake flow.
- Consistent dimensions and flange geometry allow tool-free swap-out during scheduled compressor maintenance.
Specifications
| Media type | Wet-strength pleated cellulose |
| Filtration rating | 10–25 µm nominal (intake protection grade) |
| Initial resistance | < 0.005 MPa (0.05 bar) at rated flow |
| Replacement DPD | 0.035–0.05 MPa (0.35–0.5 bar) |
| Operating temperature | −20°C to +80°C continuous |
| End-cap material | Galvanized steel with NBR / polyurethane seal |
| Inner support | Expanded metal mesh |
| Cross-reference series | Ingersoll Rand SSR (M55/M75/M110), UP5, UP6, R-Series, N-Series |
Cross Reference
The cartridge cross-references standard Ingersoll Rand intake filter part numbers for SSR, UP, R, and N-series screw compressors and is also compatible with equivalent aftermarket intake filters from competing brands. Send WIRES your OEM part number or a sample and we will match dimensions, flange orientation, and seal configuration precisely.
Applications
- Industrial rotary screw compressor intake protection in dusty environments
- Manufacturing workshops, metal fabrication, and woodworking shops
- Food and beverage packaging plants using compressed-air actuated equipment
- Textile mills and cement/concrete batch plants with high ambient dust
- Automotive andTier-1 component assembly lines
- Compressor distributors and service companies running scheduled maintenance programs
About WIRES Filters
With over 28 years of specialized manufacturing experience, WIRES is a trusted OEM/ODM supplier of industrial filter elements and filtration systems for global B2B markets. Every filter is produced under strict quality control at our ISO-certified production facility, using premium raw materials sourced from trusted global suppliers. We offer full customization — including custom dimensions, media grades, end-cap configurations, and cross-reference matching to all major OEM brands. Our products are exported worldwide to power plants, chemical processing plants, food and beverage facilities, pharmaceutical manufacturers, marine operators, and hydraulic equipment users. Contact our engineering team today to request a quote or discuss your custom filtration requirements.
