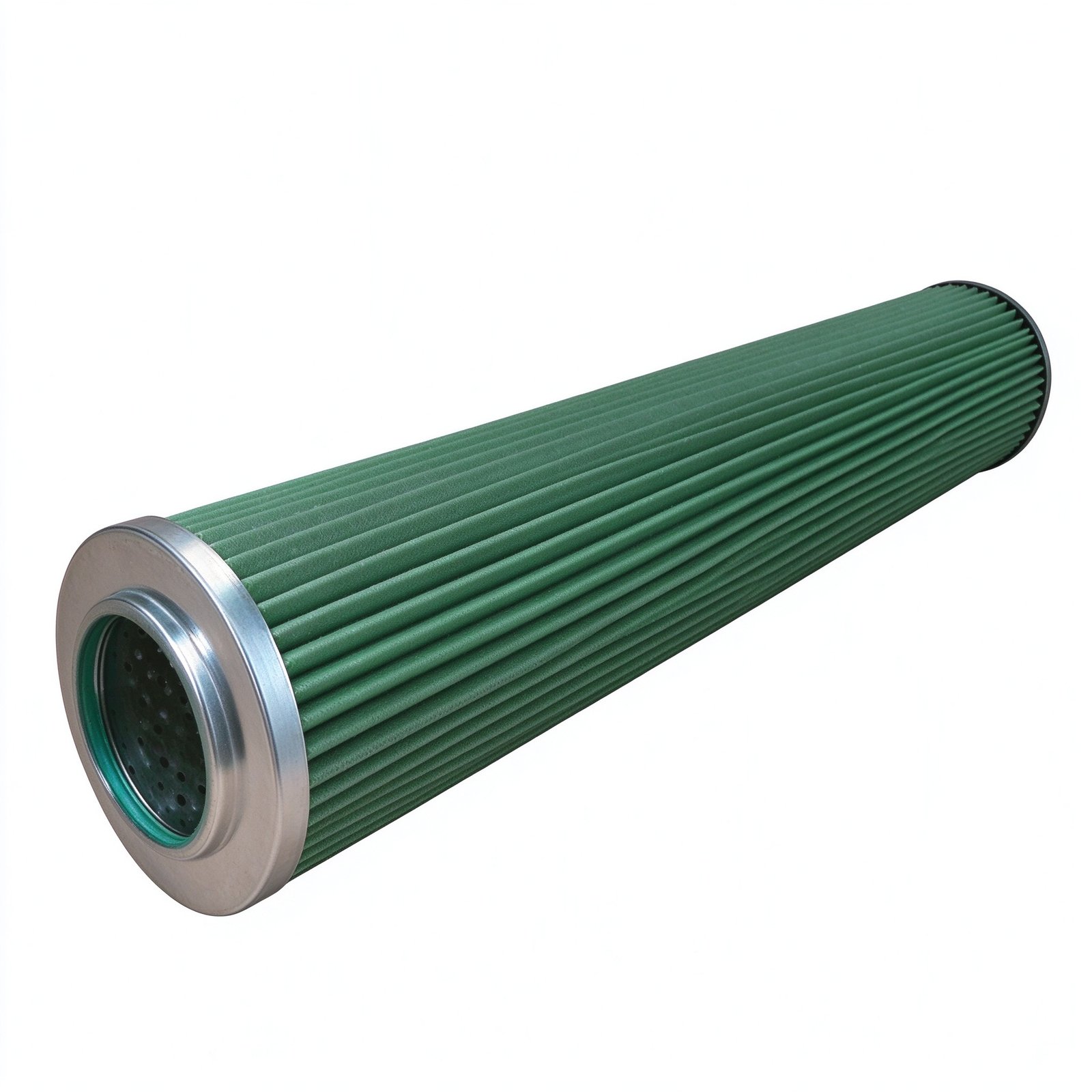

WIRES Separator Filter Element for Fuel Water Separation
The WIRES separator filter element is the polishing stage in a two-stage coalescer system used to remove free and emulsified water from aviation turbine fuel (Jet A/A-1, JP-8), gasoline, diesel, and kerosene. While the upstream coalescer cartridge merges fine water droplets into larger drops that settle by gravity, the downstream separator element uses an oleophobic (oil-wettable, water-repellent) phenolic-impregnated glass fiber media to block any remaining free water droplets while allowing clean fuel to pass through at high flow. The green-colored media provides immediate visual identification as the separator stage. Manufactured to API 1581 / AS4069 / DEF STAN 91-91 performance requirements, the element delivers outlet fuel cleanliness well below the 15 ppm water specification.
Key Features
- Oleophobic glass fiber media blocks free water droplets while permitting clean fuel flow
- Multi-layer composite structure provides high particle retention and long service life
- Meets API 1581 / AS4069 / DEF STAN 91-91 / GOST R 52045 performance standards
- Initial differential pressure <0.05 MPa at rated flow with <70 ppm residual water outlet
- Epoxy-bonded metal end caps prevent media migration and provide positive sealing
Specifications
| Parameter | Value |
|---|---|
| Media | Oleophobic phenolic-impregnated glass fiber |
| End Caps | Epoxy-coated carbon steel / 316 stainless |
| Outer Diameter | 100, 150 mm (custom) |
| Length | 400, 600, 710, 915, 1120 mm |
| Initial Differential Pressure | <0.05 MPa |
| Change-out Differential Pressure | 0.1 MPa |
| Max Inlet Water Content | <10 % v/v |
| Outlet Water Content | <70 ppm (free) |
| Temperature Rating | -10 °C to 80 °C |
Cross Reference
Direct replacement for: Velcon, Facet, Parker, Hilco, PECO, and Great Plains separator cartridges. Compatible with all major coalescer vessel OEMs (Pall, Clarifier, FAUDI, RACOR).
Applications
- Aviation fuel (Jet A, Jet A-1, JP-8, AVGAS) hydrant and dispenser systems
- Gasoline, diesel, and kerosene terminal loading rack filtration
- LPG, light gas oil, and aromatic hydrocarbon liquid separation
- Turbine lube oil and low-viscosity hydraulic oil water separation
- Refinery side-stream and product polishing
