Description
Coalescing Oil Purifier

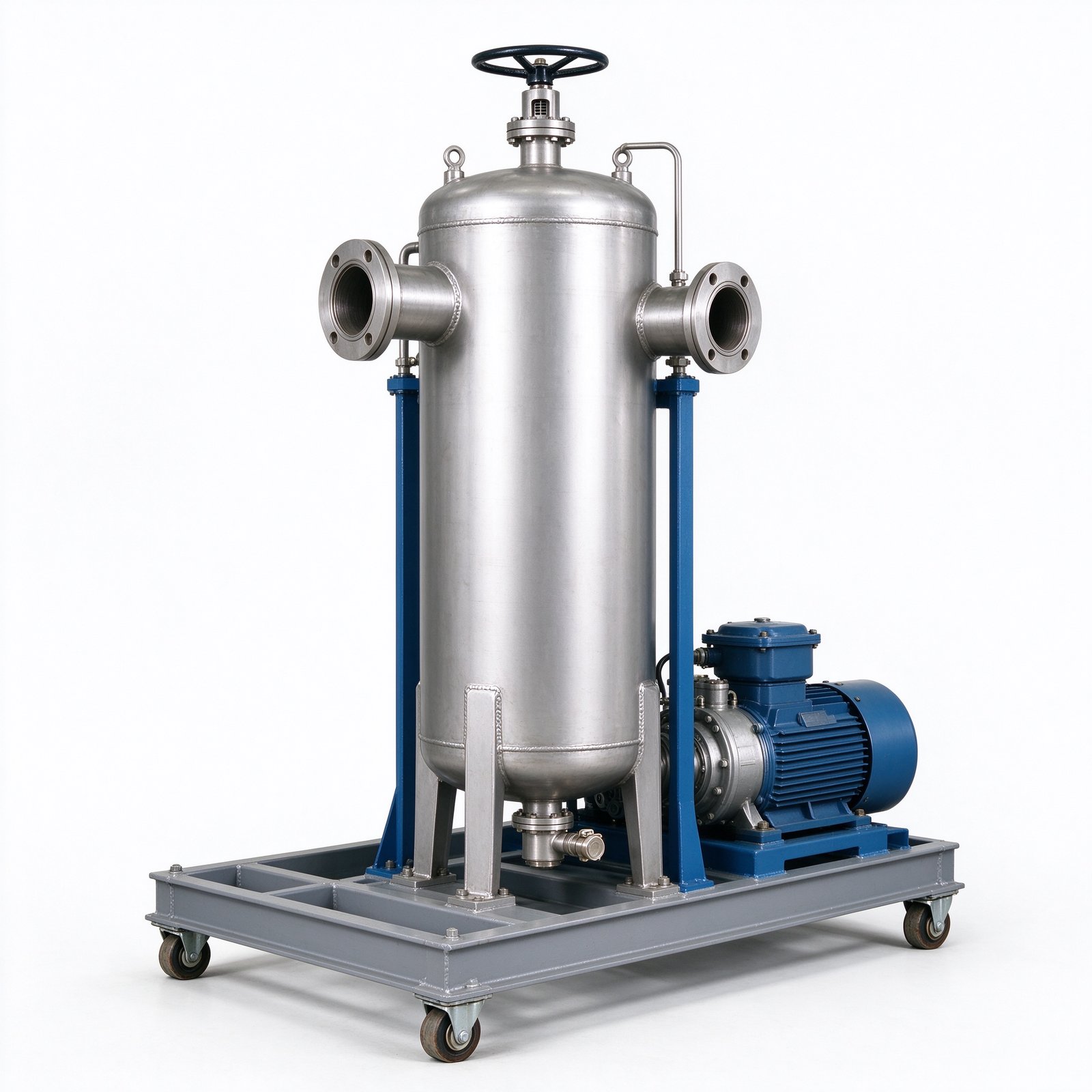

The WIRES Coalescing Oil Purifier is a liquid/liquid separation system designed to remove free and mechanically emulsified water from hydrocarbon fluids such as diesel, kerosene, fuel oil, and light turbine oil. Fluid flows first through a coalescing stage where tiny water droplets are merged into larger drops, then through a hydrophobic separator stage that rejects the coalesced water to the sump while clean oil passes through. The result is a dry, particle-free oil with water content below 100 ppm. The skid includes a vertical stainless coalescence-separation vessel, feed pump, motor, differential pressure gauges, and a bottom drain. These are standard product line specifications.
Key Features
- Two-stage coalescence principle — coalescing elements merge micro-droplets; hydrophobic separator elements drain the free water to the sump.
- Deep water removal — outlet water content below 100 ppm without heating or vacuum.
- Particle control too — the first stage also captures solid particulate, protecting downstream injectors and bearings.
- Drain-integrated vessel — bottom drain valve and sight glass let operators discharge collected water on schedule.
- Skid-mounted, easy install — all piping, pump, motor, and gauges pre-assembled on a common frame.
Specifications
| Flow rate | 500, 1000, 2000, 3000 L/min (standard line) |
| Separation principle | Coalescing + hydrophobic separator elements |
| Inlet water content | Up to 5-10% free water |
| Outlet water content | < 100 ppm |
| Filtration accuracy | 5-10 µm solids removal |
| Working pressure | 0.3-0.6 MPa |
| Vessel material | Carbon steel (epoxy) / stainless 304/316 |
| Motor power | 2.2-11 kW, 380V 3-phase |
| Suitable fluids | Diesel, kerosene, fuel oil, light turbine oil |
Cross Reference: Standard line specifications. Replacement coalescing and separator elements compatible with Velcon, Facet, and Peerless-style vessels; custom housing on request.
Applications
- Diesel and fuel farm water coalescing and polishing
- Gas turbine lube oil water separation
- Refinery and terminal hydrocarbon fluid conditioning
- Marine bunker fuel and diesel water removal
- Heavy-duty equipment fuel protection against water contamination
- Power station fuel oil pre-treatment
