Description

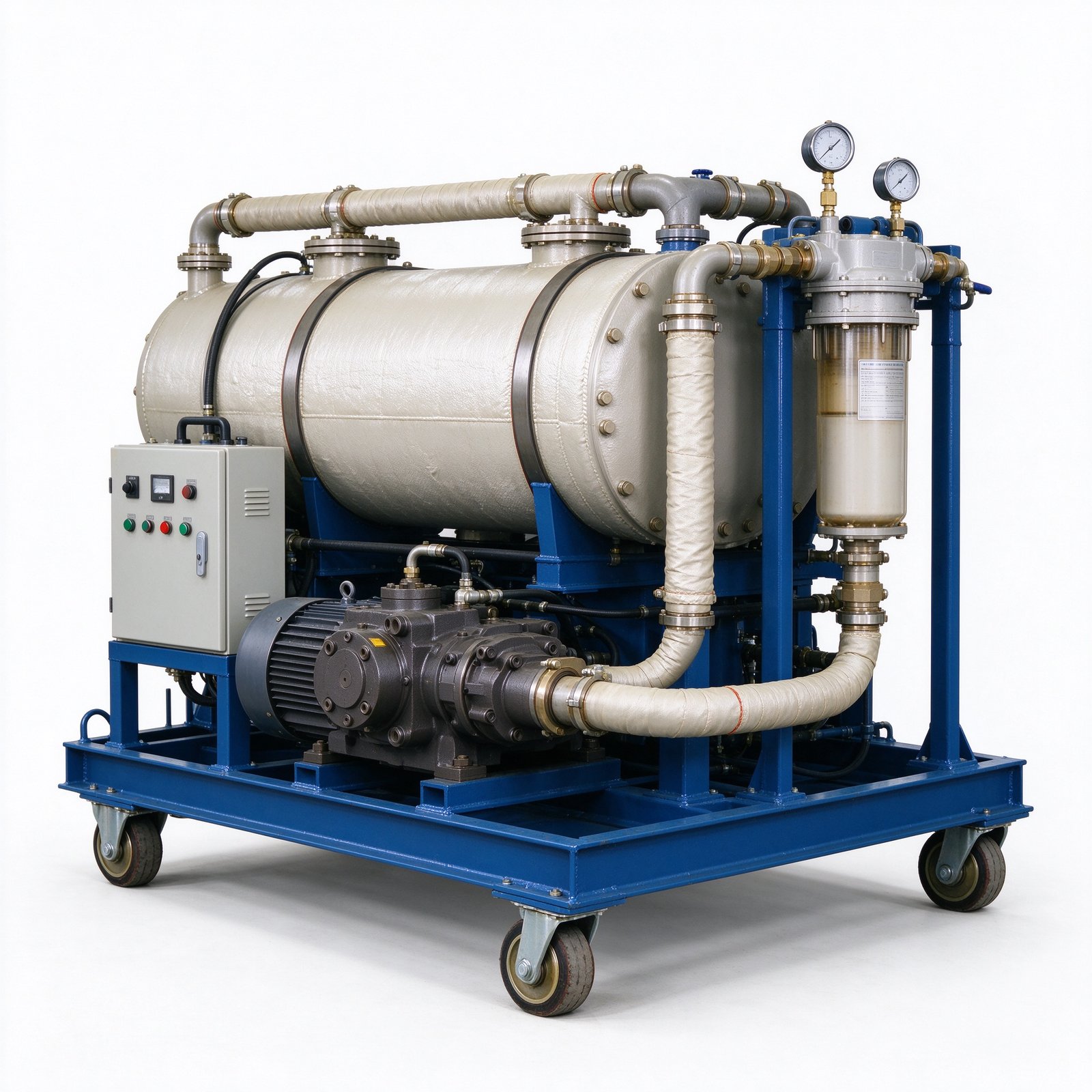

High Viscosity Oil Purifier
The WIRES High Viscosity Oil Purifier is built specifically for heavy, waxy fluids that resist pumping — such as industrial gear oil, circulating cylinder oil, residue fuel, and used engine oil. An insulated horizontal heating tank brings the oil down to pumpable viscosity before it reaches a heavy-duty gear pump, after which multi-stage filtration removes wear metals, carbon, and soot. The insulated piping and heating control keep the whole loop at optimal temperature, preventing pressure spikes and element collapse. These are standard product line specifications; heater power, flow, and element rating are sized to your actual oil grade.
Key Features
- Integrated heating tank — insulated horizontal vessel with electric immersion heaters reduces viscosity to pumpable range.
- Heavy-duty gear pump — positive-displacement pump maintains flow against high back-pressure and cold start-up.
- Insulated loop piping — heated hoses and manifold prevent heat loss and viscosity re-rise between skid and tank.
- Multi-stage depth filtration — 10-50 µm elements capture wear metal, carbon, and soot without frequent changes.
- Safe temperature control — thermostat and over-temperature switch prevent local overheating of the oil film.
Specifications
| Flow rate | 50, 100, 200, 300 L/min (standard line) |
| Applicable viscosity | Up to 150-460 cSt at 40 °C (after heating) |
| Filtration accuracy | 10, 25, 50 µm depth elements |
| Heating power | 9-36 kW (flow dependent) |
| Operating temperature | Up to 60-80 °C |
| Pump type | Heavy external-gear pump |
| Motor power | 2.2-7.5 kW, 380V 3-phase |
| Working pressure | 0.4-0.8 MPa |
| Cleanliness level | NAS 1638 Class 6-8 |
Cross Reference: Standard line specifications. Replacement depth elements compatible with large hydraulic and lube filter vendors; custom jacketed hoses and outlet connections on request.
Applications
- Industrial gearbox and circulating gear oil cleaning
- Marine cylinder and system oil purification
- Heavy-equipment and steel-mill lube oil servicing
- Residual fuel and bunker oil pre-filtration
- Used engine oil and re-refinery pre-treatment
- Cement, mining, and paper machine gear oil rounds
