Description

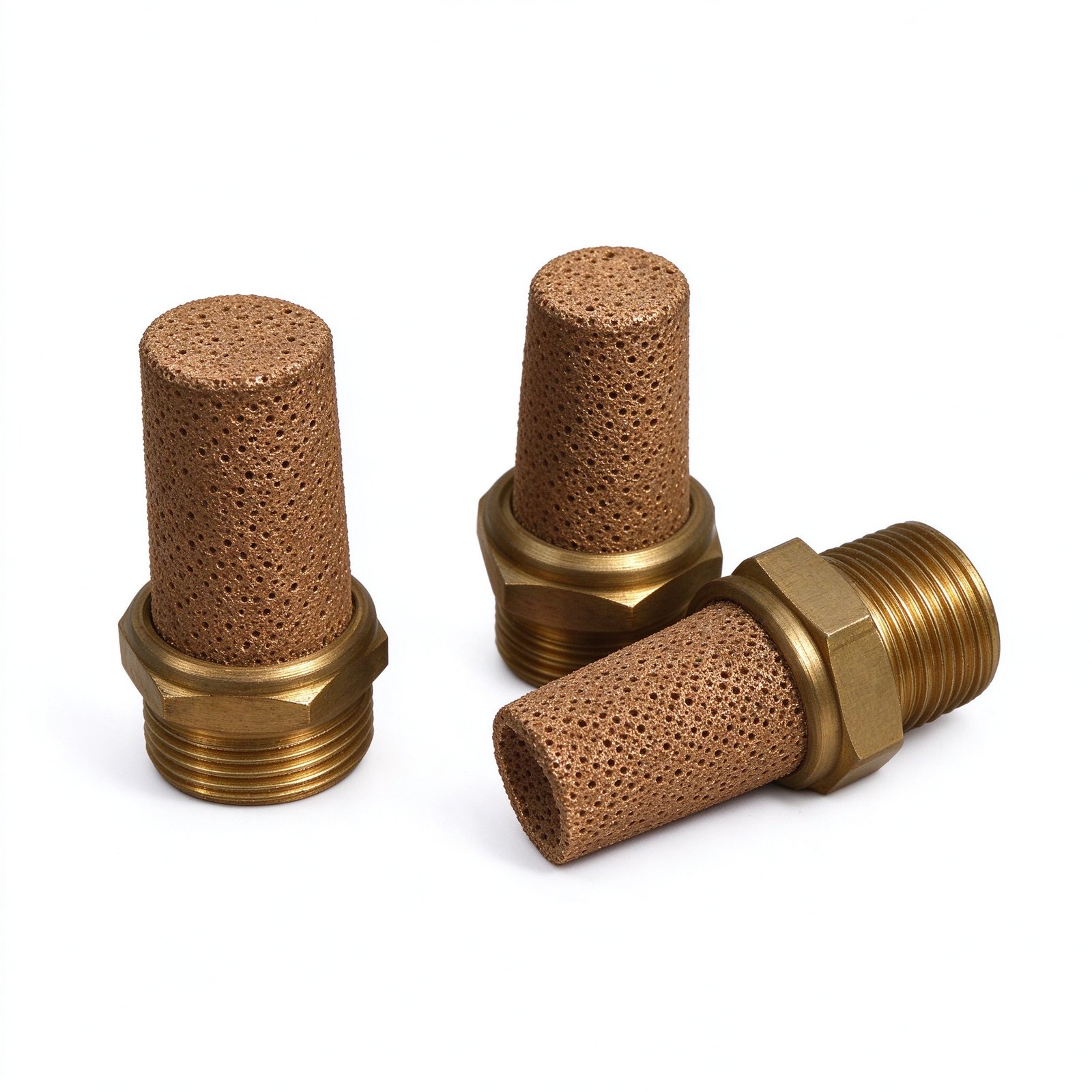

WIRES Metal Powder Sintered Filter Element
The WIRES metal powder sintered filter element is manufactured by compressing and sintering spherical bronze, stainless steel, or titanium powder into a rigid, porous tube, disc, or custom shape. The controlled particle size distribution creates a uniform, predictable pore structure with high open porosity (up to 40 %) and excellent gas permeability. Because the element is monolithic — composed entirely of bonded metal particles — there is no media migration, no fiber release, and no bypass, making it ideal for sterile, high-purity, and high-temperature applications. The sintered powder structure is inherently self-supporting, requiring no internal support core.
Key Features
- Monolithic porous structure — no media migration, no fiber release, no bypass
- Wide rating range from 5 to 100 μm with absolute efficiency
- High porosity (35–45 %) delivers high flow rates at low differential pressure
- Available in bronze (CuSn10), 316L stainless steel, and titanium for corrosion resistance
- Cleanable by back-flush, ultrasonics, or acid wash — extended service life
Specifications
| Parameter | Value |
|---|---|
| Filter Rating | 5, 10, 20, 35, 50, 70, 100 μm |
| Material Options | Bronze (CuSn10), 316L Stainless Steel, Titanium Gr.1 |
| Porosity | 30–45 % |
| Operating Temperature | Bronze: ≤200 °C; SS/Ti: ≤500 °C |
| Maximum Pressure | 1.0 MPa (element) |
| OD Range | 10–80 mm |
| Length Range | 20–300 mm |
| End Connections | NPT/BSPP thread, flare, flanged, welded base |
Cross Reference
Replaces: Mott, GKN Sinter Metals, Pall PSS, Porvair, and traditional porous bronze sintered elements. Custom diameters, wall thicknesses, and end fittings fabricated to drawing.
Applications
- Pneumatic system silencers, exhaust mufflers, and vent breather vents
- Gas sparging and bubble generation in tanks and reactors
- Compressed air and nitrogen point-of-use filtration
- High-temperature gas sampling and analyzer protection filters
- Hydraulic and lubrication oil suction strainers
- Pharmaceutical vacuum drying and sterile vent applications
About WIRES Filters
With over 28 years of specialized manufacturing experience, WIRES is a trusted OEM/ODM supplier of industrial filter elements and filtration systems for global B2B markets. Every filter is produced under strict quality control at our ISO-certified production facility, using premium raw materials sourced from trusted global suppliers. We offer full customization — including custom dimensions, media grades, end-cap configurations, and cross-reference matching to all major OEM brands. Our products are exported worldwide to power plants, chemical processing plants, food and beverage facilities, pharmaceutical manufacturers, marine operators, and hydraulic equipment users. Contact our engineering team today to request a quote or discuss your custom filtration requirements.
