Description
WIRES Multi-layer Sintered Wire Mesh Filter

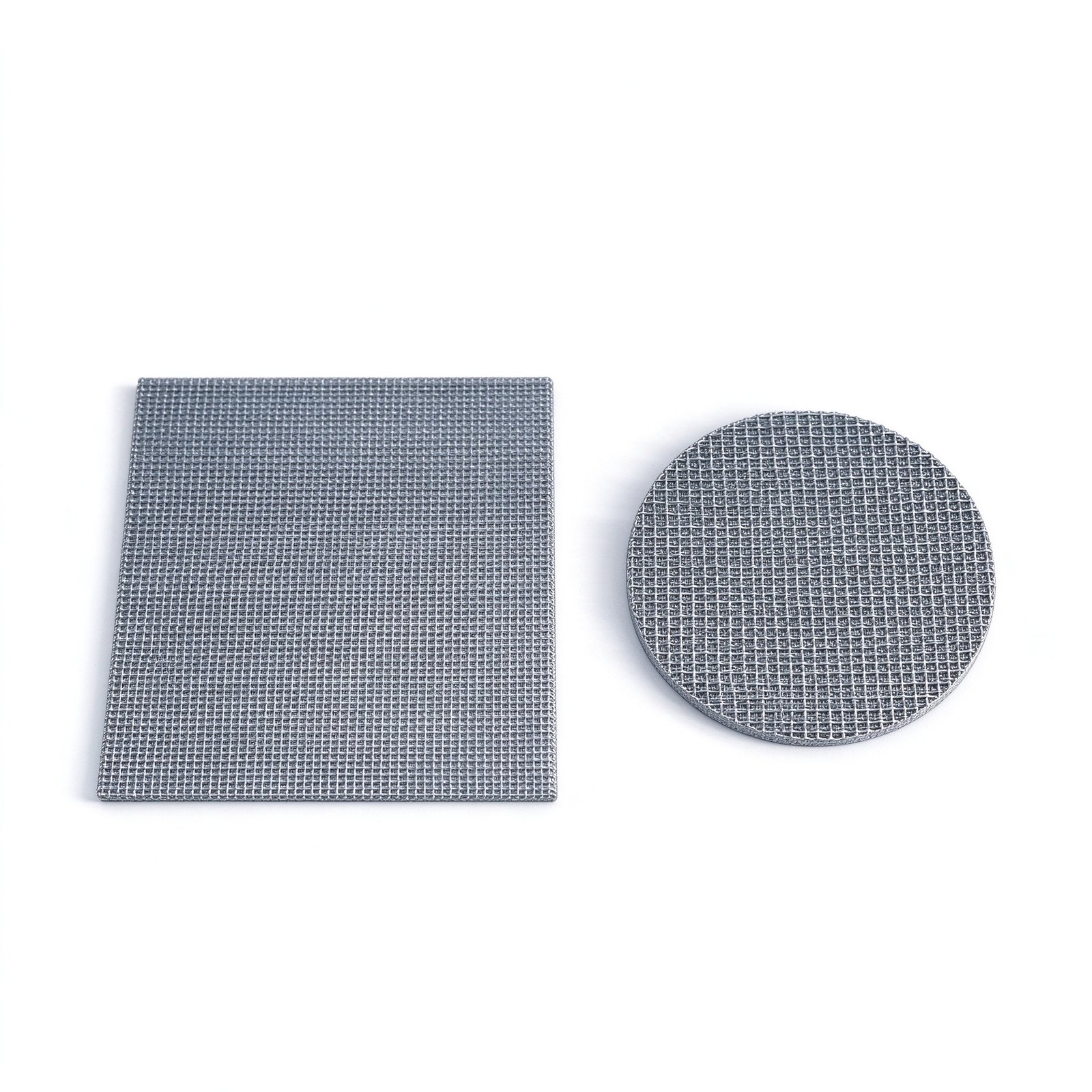

The WIRES multi-layer sintered wire mesh filter is a rigid, precision filtration media panel manufactured by stacking and vacuum-sintering multiple layers of stainless steel woven wire cloth into a single homogeneous plate. The controlled layer arrangement creates a graded pore structure with consistent absolute-rated filtration from 2 to 60 μm. Unlike single-layer wire cloth, the sintered construction eliminates mesh migration, provides high structural rigidity, and delivers uniform surface flow distribution across the entire disc area. Available as round discs, square plates, or custom geometries welded into candle cartridges, cone baskets, or cylindrical cartridges.
Key Features
- 2 to 7 sintered layers create a depth-graded pore structure for high dirt-holding capacity
- Absolute-rated filtration from 2 to 60 μm with predictable beta ratios
- 316L stainless steel construction withstands temperatures from -20 °C to 600 °C
- Fully cleanable by back-flush, ultrasonic, or chemical cleaning — reusable for years
- Maximum differential pressure up to 3.0 MPa with excellent mechanical rigidity
Specifications
| Parameter | Value |
|---|---|
| Filter Rating | 2, 5, 10, 15, 25, 40, 60 μm |
| Material | 1.4404 (316L) / 1.4571 (316Ti) / 904L |
| Number of Layers | 2 to 7 layers (custom) |
| Plate Thickness | 1.5–6.5 mm |
| Operating Temperature | -20 °C to 600 °C |
| Maximum Pressure Difference | 3.0 MPa |
| Standard Size | Round: OD 10–500 mm; Square: up to 1000×1000 mm |
| Custom Shapes | Welded cones, baskets, candles, and特殊 geometries per drawing |
Cross Reference
Interchangeable with: GKN Sinter Metals, Bekaert Bopp & Reuther, Porvair, and traditional Dutch-weave wire cloth discs. Custom edge welding, flanging, and gasketing available to match any existing holder design.
Applications
- Polymer melt extrusion screen changers and candle filters
- Chemical and petrochemical process filtration (acids, solvents, catalysts)
- Pharmaceutical and biopharmaceutical inline vent filters
- Food and beverage beverage clarification and syrup filtration
- High-temperature gas and steam filtration
- Hydraulic and lubrication oil offline recirculation polishing
About WIRES Filters
With over 28 years of specialized manufacturing experience, WIRES is a trusted OEM/ODM supplier of industrial filter elements and filtration systems for global B2B markets. Every filter is produced under strict quality control at our ISO-certified production facility, using premium raw materials sourced from trusted global suppliers. We offer full customization — including custom dimensions, media grades, end-cap configurations, and cross-reference matching to all major OEM brands. Our products are exported worldwide to power plants, chemical processing plants, food and beverage facilities, pharmaceutical manufacturers, marine operators, and hydraulic equipment users. Contact our engineering team today to request a quote or discuss your custom filtration requirements.
