Description

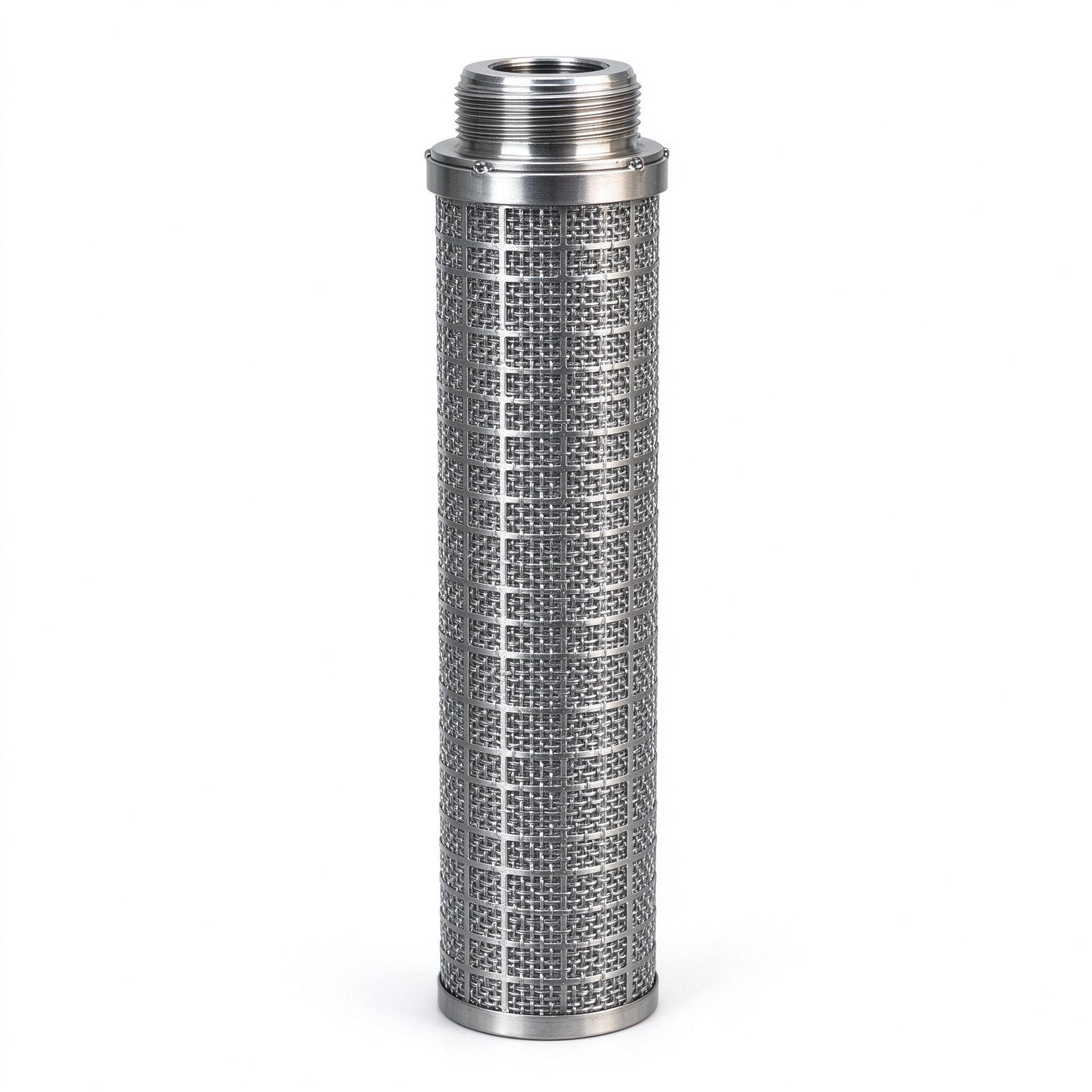

Sintered Metal Fiber Felt Filter Element
The WIRES sintered metal fiber felt filter element is a high-performance filtration product manufactured from precisely laid stainless steel micro-fiber felt, layered and sintered at high temperature to form a rigid, porous filter medium. The resulting graduated pore structure provides exceptional filtration accuracy, high dirt-holding capacity, and outstanding mechanical strength — making it ideal for demanding high-temperature, high-pressure, and corrosive process applications where disposable media elements cannot survive.
Key Features
- Precision sintered construction: Stainless steel micro-fibers (down to micrometer diameter) are layered and sintered to form controlled pore-size gradients for high efficiency and high dirt capacity.
- Wide micron range: Filtration ratings from 1 μm to 80 μm, with absolute-rated performance and excellent particle retention.
- High pressure and temperature: Withstands working pressures up to 31.7 MPa and temperatures up to 300°C.
- Cleanable and reusable: Backwashable and chemically cleanable for extended service life and lower total cost of ownership.
- Corrosion resistant: Standard material 316L stainless steel; also available in 304L, Hastelloy, and other alloys on request.
Specifications
| Product Type | Sintered Metal Fiber Felt Filter Element |
| Filter Media | Stainless Steel Sintered Fiber Felt |
| Standard Material | 316L Stainless Steel |
| Filtration Rating | 1 μm – 80 μm |
| Working Pressure | ≤ 31.7 MPa |
| Working Temperature | ≤ 300°C |
| Media Viscosity Limit | ≤ 260 Pa·s |
| Standard Sheet Sizes | 1000×500 mm, 1000×600 mm, 1000×1000 mm, 1200×1000 mm |
| Max Sheet Size | 1450×1180 mm |
| Custom Configurations | Candles, discs, pleated cartridges, custom sizes on request |
Cross Reference
WIRES sintered metal felt elements are commonly used as replacements in polymer melt filtration, high-temperature gas filtration, and catalyst recovery systems. They are also available as multilayer sintered mesh cartridges (2–7 layers, 2–60 μm, 3.0 MPa max differential pressure, -20 to 600°C) and metal powder sintered elements for pneumatic and high-temperature applications. Custom alloys, dimensions, and end-fitting configurations are available on request.
Applications
- Petrochemical and refinery high-temperature process filtration
- Nuclear industry coolant and process fluid filtration
- Synthetic polymer and polyester melt filtration
- Photographic film and optical manufacturing
- Food and beverage high-temperature process filtration
- Pharmaceutical and fine chemical production
- Aerospace and environmental protection systems
About WIRES Filters
With over 28 years of specialized manufacturing experience, WIRES is a trusted OEM/ODM supplier of industrial filter elements and filtration systems for global B2B markets. Every filter is produced under strict quality control at our ISO-certified production facility, using premium raw materials sourced from trusted global suppliers. We offer full customization — including custom dimensions, media grades, end-cap configurations, and cross-reference matching to all major OEM brands. Our products are exported worldwide to power plants, chemical processing plants, food and beverage facilities, pharmaceutical manufacturers, marine operators, and hydraulic equipment users. Contact our engineering team today to request a quote or discuss your custom filtration requirements.
