Description

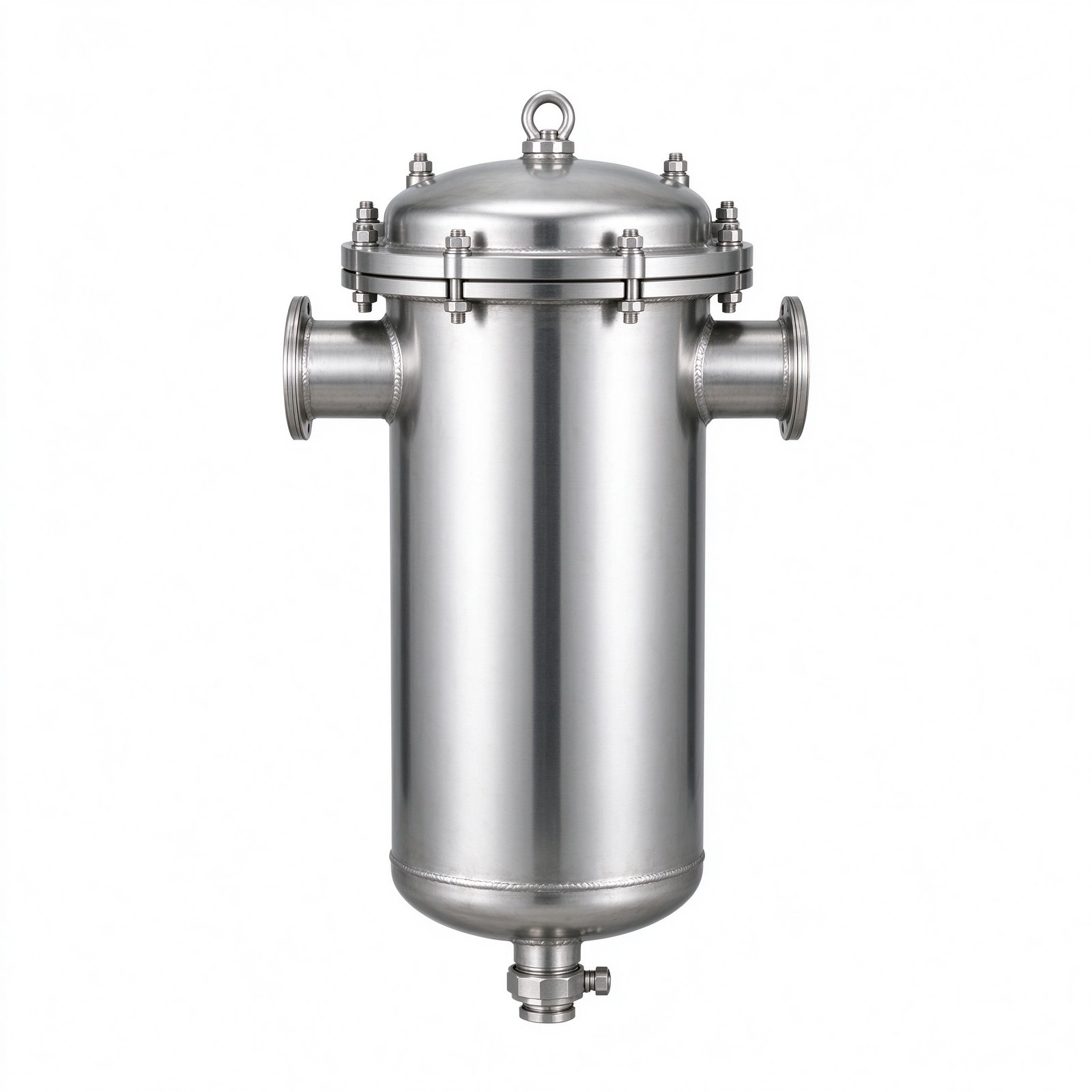

WIRES Stainless Steel Bag Filter Housing
The WIRES bag filter housing is a vertical pressure vessel designed for high-flow liquid filtration using standard size #1 or #2 filter bags. The vessel features a side-inlet / side-outlet nozzle arrangement that directs flow evenly across the filter bag, maximizing effective filtration area and reducing pressure drop. A removable internal basket supports the filter bag and prevents collapse under differential pressure. The bolted cover flange with lifting eye allows quick bag change-out without special tools. All wetted parts are 304 or 316L stainless steel for corrosion resistance in chemical processing, food and beverage, pharmaceutical, and water treatment applications.
Key Features
- Available in single-bag up to 24-bag configurations (#1 or #2 bag size)
- 304 or 316L stainless steel wetted parts with mirror or brushed finish
- Bolted cover flange with lifting eye for safe, quick bag replacement
- Perforated internal basket supports filter bags up to 0.5 MPa differential pressure
- Standard flanged inlet/outlet with optional sanitary tri-clamp connections
Specifications
| Parameter | Value |
|---|---|
| Bag Size | #1 (180×430 mm) or #2 (180×810 mm) |
| Number of Bags | 1, 2, 4, 6, 8, 12, 16, 24 |
| Flow Capacity | Up to 400 m³/h (multi-bag) |
| Design Pressure | 1.0 MPa (standard); 1.6 MPa (optional) |
| Design Temperature | -10 °C to 150 °C (EPDM/FKM gasket) |
| Material | 304 / 316L stainless steel |
| Surface Finish | Pickled/passivated; optional Ra ≤ 0.6 μm sanitary polish |
| Connections | Flanged EN 1092 / ANSI 150; tri-clamp option |
| Drain / Vent | NPT bottom drain; top vent valve standard |
Cross Reference
Dimensionally interchangeable with: Eaton, Rosedale, Shelco, Hayward, and Patriot bag filter housings. Custom skid packages, pumps, and instrumentation available.
Applications
- Chemical processing and paint/coatings filtration
- Food and beverage — beverage, syrup, edible oil clarification
- Water treatment — RO pre-filtration, cooling tower side-stream
- Pharmaceutical and biotech bulk drug and solvent filtration
- Pulp and paper process water and coating filtration
- Industrial wastewater pretreatment before discharge
About WIRES Filters
With over 28 years of specialized manufacturing experience, WIRES is a trusted OEM/ODM supplier of industrial filter elements and filtration systems for global B2B markets. Every filter is produced under strict quality control at our ISO-certified production facility, using premium raw materials sourced from trusted global suppliers. We offer full customization — including custom dimensions, media grades, end-cap configurations, and cross-reference matching to all major OEM brands. Our products are exported worldwide to power plants, chemical processing plants, food and beverage facilities, pharmaceutical manufacturers, marine operators, and hydraulic equipment users. Contact our engineering team today to request a quote or discuss your custom filtration requirements.
