Description
WIRES Coalescing Separator Filter Housing

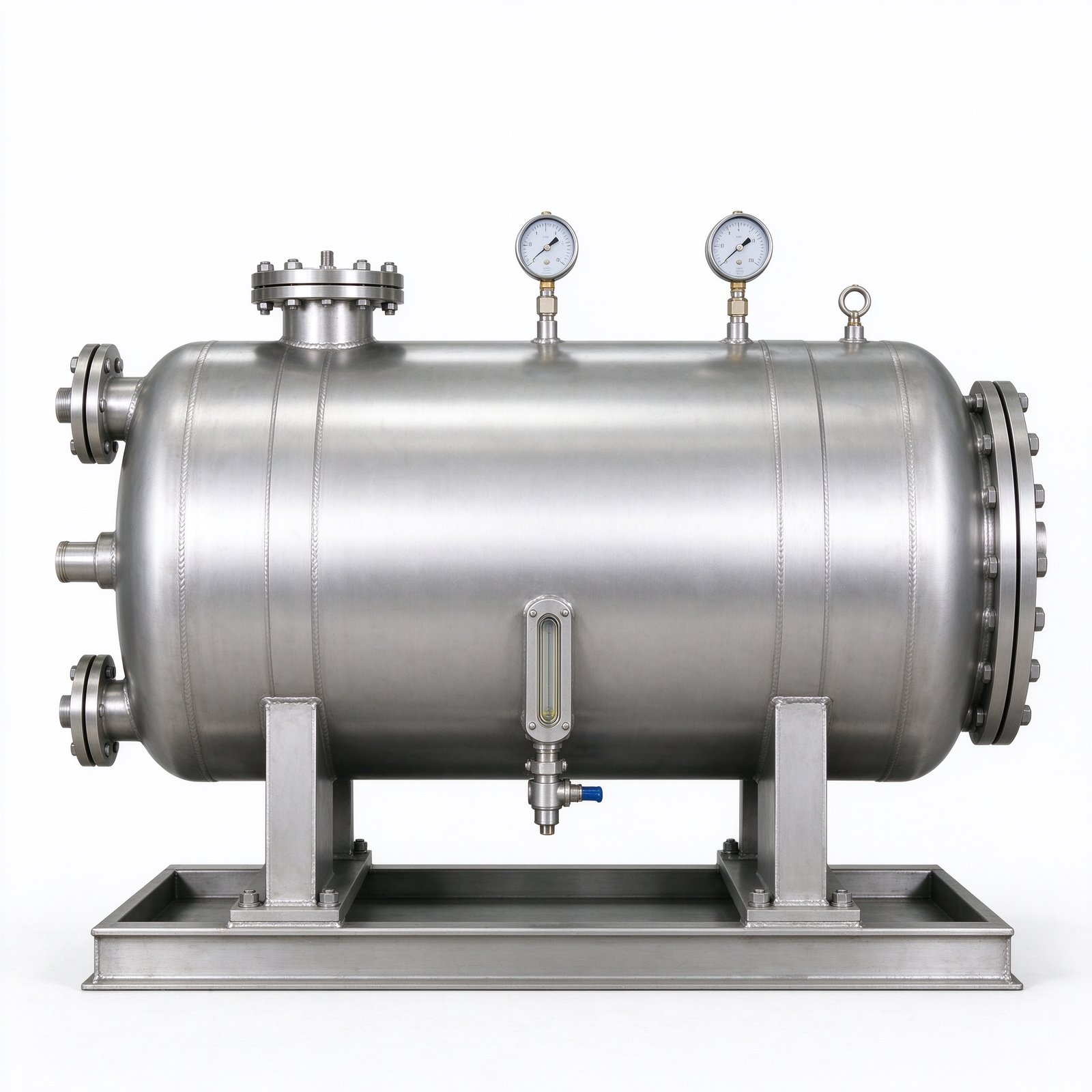

The WIRES coalescing separator filter housing is a horizontal or vertical pressure vessel engineered to house two-stage coalescer/separator cartridges for efficient removal of free and emulsified water from hydrocarbon liquids. The first stage — coalescer cartridges — captures fine water droplets and merges them into larger drops that settle by gravity into the sump. The second stage — oleophobic separator cartridges — blocks any remaining free water while allowing clean fuel to pass. The vessel is equipped with inlet/outlet flanges, a large liquid sump with sight-glass drain, differential pressure gauges across each stage, and vent/drain connections. Designed to API 12J and ASME VIII standards with optional DNV/CE/PED certification.
Key Features
- Two-stage design: coalescer bank + oleophobic separator bank in a single vessel
- Horizontal configuration minimizes height and accommodates high-flow skid packages
- Integrated gravity sump with sight glass drain and solenoid dump valve
- Differential pressure gauges on each stage for predictive cartridge change-out
- ASME VIII / PED / DNV certified design available with U-stamp or CE marking
Specifications
| Parameter | Value |
|---|---|
| Design Pressure | 1.0, 1.6, 2.5, 4.0 MPa |
| Design Temperature | -29 °C to 120 °C |
| Flow Capacity | 5–500 m³/h (custom) |
| Vessel Material | Carbon steel (epoxy lined) / 304 / 316L stainless steel |
| Flange Standard | ANSI 150/300, EN 1092, JIS |
| Cartridge Type | API 1581 coalescer + separator cartridges |
| Inlet Water Tolerance | Up to 10 % v/v free water |
| Outlet Water Content | <15 ppm free water (per API 1581) |
| Internal Coating | Epoxy phenolic (carbon steel) or pickled/passivated (SS) |
Cross Reference
Dimensionally compatible with: Pall, Velcon, Facet, FAUDI, RACOR, and Great Plains coalescer cartridges. Custom skid-mounted packages with pumps, controls, and bypass loops available.
Applications
- Aviation fuel hydrant system and airport refueler coalescers
- Diesel and gasoline terminal loading truck filtration
- Natural gas liquid (NGL) and condensate dehydration
- Turbine lube oil and hydraulic oil water removal
- Refinery side-stream water wash and product polishing
