WIRES Natural Gas Filter Separator

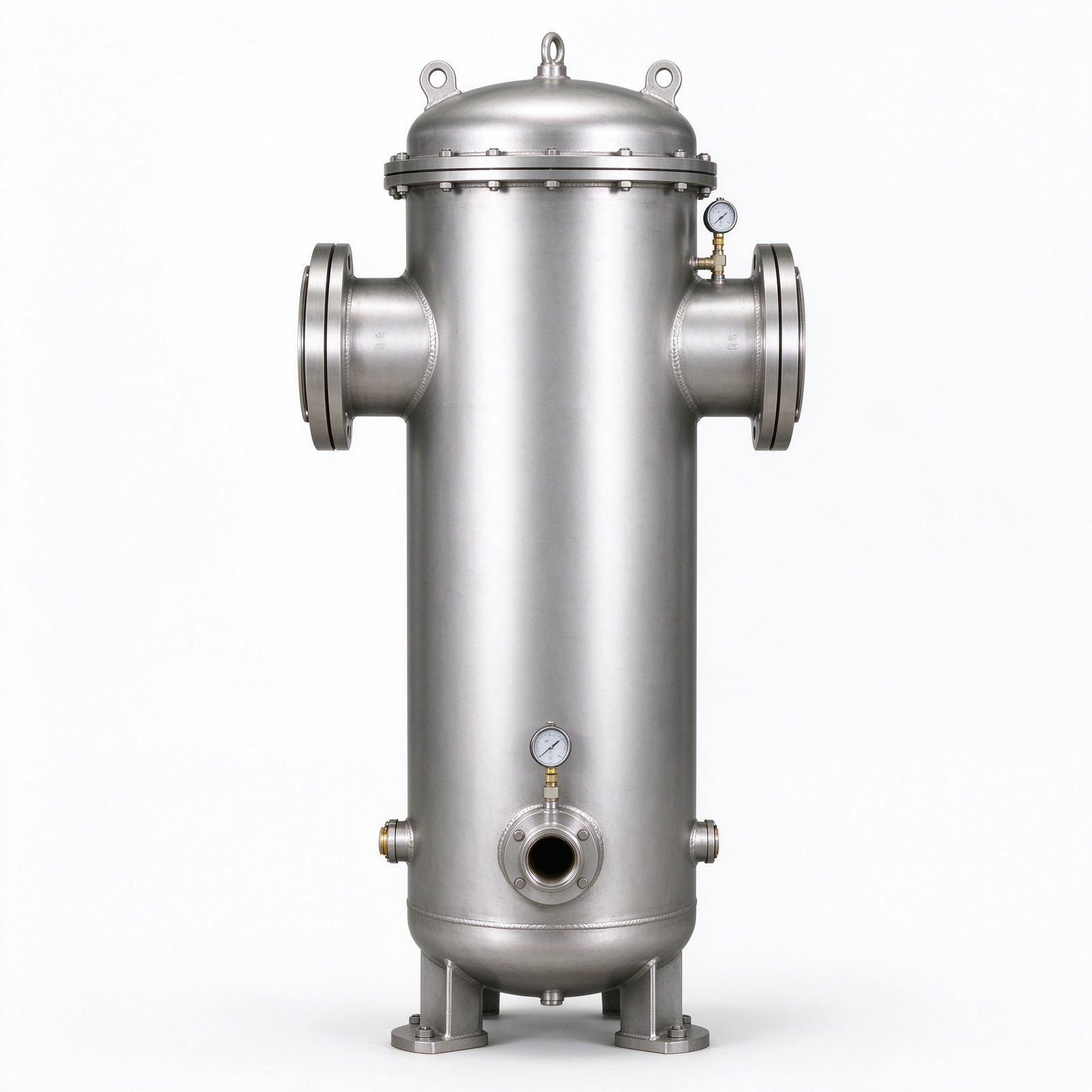

The WIRES natural gas filter separator is a vertical pressure vessel designed to remove solids, liquid droplets, and hydrocarbon mist from pipeline natural gas, associated gas, and flare gas streams. The gas enters through a side inlet and first encounters a cyclonic vane inlet device that removes bulk liquid and large solids by centrifugal force. The gas then flows upward through a bed of high-efficiency coalescing filter cartridges that capture fine liquid aerosol and sub-micron particles. Separated liquids drain by gravity into the bottom sump, which is equipped with a level controller, dump valve, and drain connection. The clean gas exits through the top outlet. Built to ASME Section VIII Div. 1 / PED / GB 150 standards with optional NACE MR0175 sour service certification.
Key Features
- Two-stage separation: cyclonic vane inlet + high-efficiency coalescing cartridges
- Removes solids down to 0.3 μm and liquid droplets to <0.01 gal/MMSCF
- Integrated liquid sump with level transmitter and automatic dump valve
- ASME VIII / PED / GB 150 design with optional U-stamp, CE marking, or NACE MR0175
- Quick-opening closure (hinged or swing bolt) for fast cartridge replacement
Specifications
| Parameter | Value |
|---|---|
| Design Pressure | 1.6, 2.5, 4.0, 6.3, 10.0 MPa |
| Design Temperature | -29 °C to 120 °C |
| Gas Flow Capacity | 1,000–200,000 Nm³/h (custom) |
| Vessel Material | Q345R carbon steel / 304 / 316L / 2205 duplex |
| Internal Coating | Epoxy phenolic or NACE MR0175 sour service |
| Inlet Device | Cyclonic vane / diverter type |
| Filter Cartridges | Coalescing gas cartridges (Pall/Peco/Ultipleat compatible) |
| Outlet Efficiency | <0.01 ppm liquid aerosol; <0.3 μm solids at 99.8 % |
| Nozzle Flanges | ANSI 150/300/600, DIN, JIS |
| Liquid Drain | Level-controlled dump valve + manual bypass |
Cross Reference
Compatible with: Pall, PECO, Frames, Proserv, and Peerless gas coalescer cartridges. Custom skid packages with metering, control valves, and ESD systems available.
Applications
- Natural gas transmission pipeline metering and regulator station protection
- Gas processing plant inlet and outlet gas scrubbing
- Compressor suction and discharge gas protection
- LNG plant feed gas pretreatment
- Biogas and landfill gas upgrading (upstream of membranes)
- Fuel gas conditioning for turbines and boilers
