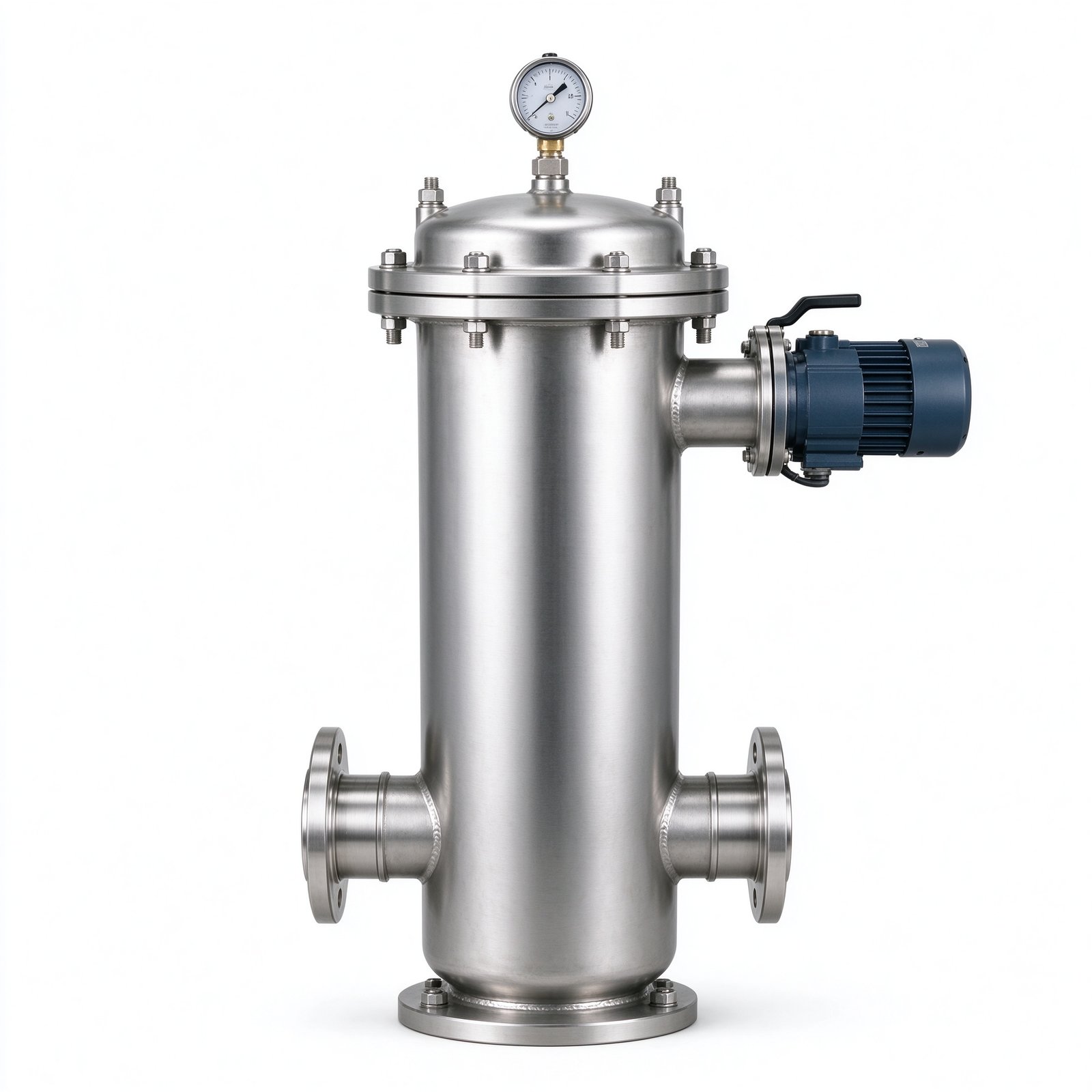

WIRES Raw Material Process Filter Housing
The WIRES raw material process filter housing is a heavy-duty stainless steel pressure vessel engineered for continuous filtration of high-viscosity raw materials such as resins, polymers, inks, adhesives, pigments, and specialty chemicals. Unlike disposable bag housings, this unit integrates a motorized self-cleaning scraper mechanism or automatic back-flush port that removes accumulated solids without stopping production. A pressure gauge monitors differential pressure across the element, triggering automated cleaning cycles. The 316L construction with sanitary clamp or flange connections ensures cleanability and compliance with food, cosmetic, and pharmaceutical-grade processing requirements.
Key Features
- Motorized scraper or automatic back-flush cleaning — no production downtime
- 316L stainless steel body with sanitary interior polish (Ra ≤ 0.6 μm)
- Compatible with candle, sintered mesh, or wedge wire filter elements for high-viscosity media
- Integrated differential pressure gauge and electronic control interface
- Heating jacket option for heat-sensitive or high-solidification raw materials
Specifications
| Parameter | Value |
|---|---|
| Design Pressure | 1.0 MPa (optional 1.6 MPa) |
| Design Temperature | 0–120 °C; up to 200 °C with heating jacket |
| Body Material | 316L stainless steel |
| Filter Element | Sintered mesh / wedge wire candle (2–100 μm) |
| Flow Range | 1–100 m³/h (custom) |
| Connections | Sanitary tri-clamp / DIN flange / threaded |
| Motor | 0.37–1.5 kW, 220V/380V, IP55 |
| Control | PLC panel with automatic cleaning cycle |
Cross Reference
Comparable to: Eaton AFS, Mahani, and Hilco self-cleaning process filter vessels. Custom nozzle orientations, jacket designs, and control voltages available.
Applications
- Paint, coating, and ink raw material filtration before dispersing
- Adhesive, resin, and polymer melt pre-filtration
- Cosmetic and personal care raw material processing
- Food and edible oil refining intermediate filtration
- Pharmaceutical API and solvent recovery filtration
- Pulp and paper coating color and pigment filtration
