BEA Replacement Compressed Air Precision Filter Element

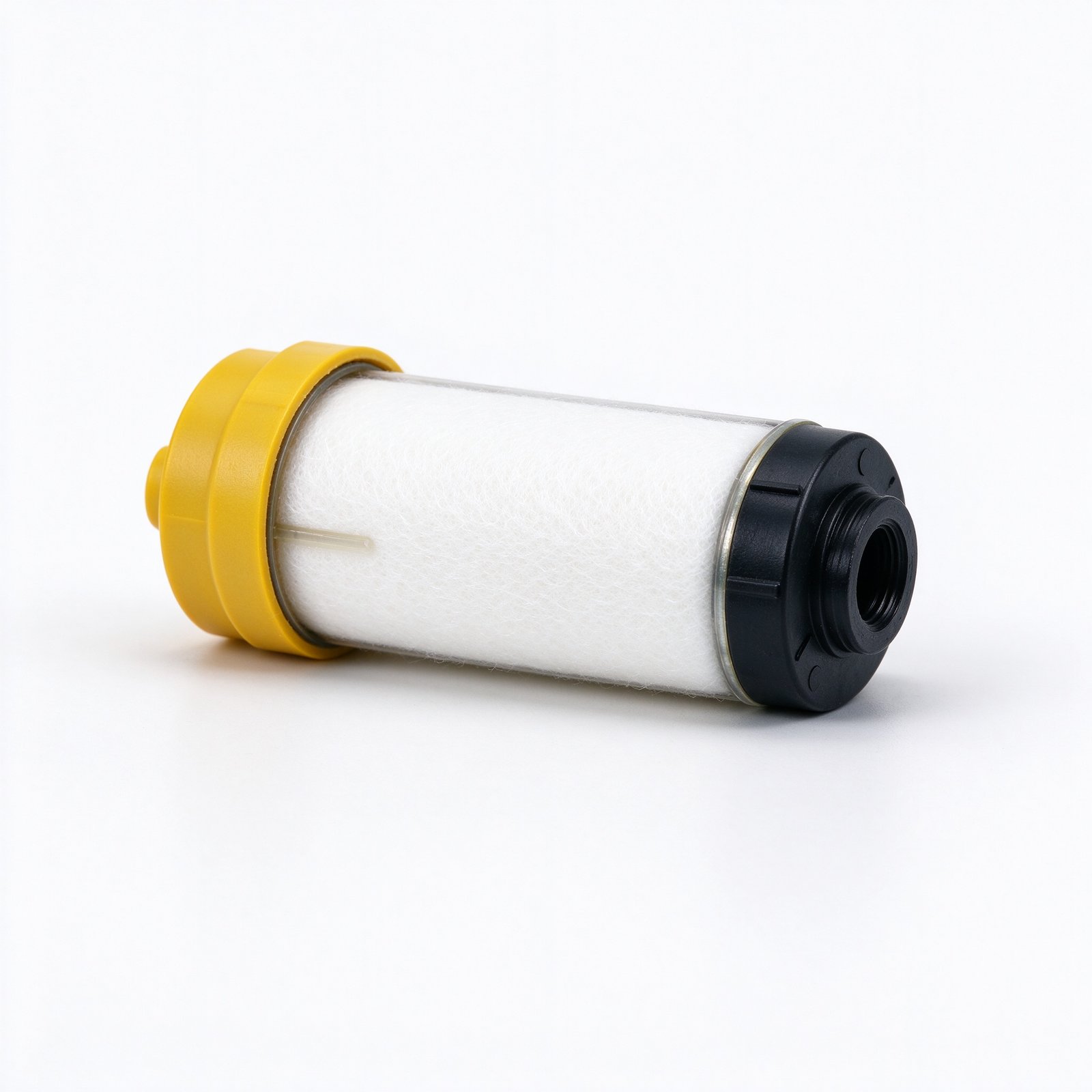

The WIRES BEA replacement compressed-air precision filter element is a direct-fit cartridge for BEA (Italian) inline compressed-air filter housings used in industrial air-treatment systems. The element uses multi-layer micro-glass-fiber media to coalesce liquid water and oil aerosol and to capture solid particulate, delivering compressed air that meets demanding ISO 8573-1 purity classes. A yellow-coded top end cap and black base with center port match the BEA housing geometry, while EPDM / NBR seals ensure zero bypass. It is engineered as a cost-competitive, performance-equivalent alternative to BEA OEM cartridges.
Key Features
- Direct replacement for BEA inline compressed-air filter housings across standard flow sizes.
- Multi-layer micro-glass-fiber coalescing media achieves 0.01 mg/m³ oil carryover.
- Yellow color-coded end cap and black base match BEA housing installation geometry.
- EPDM / NBR bonded seals resist condensed water and synthetic compressor lubricants.
- Optimized pleat area keeps initial pressure drop low and service intervals long.
Specifications
| Media type | Multi-layer micro-glass fiber |
| Filtration rating | 0.01 / 0.1 / 1.0 µm grades available |
| Oil aerosol carryover | ≤ 0.01 mg/m³ (coalescing grade) |
| Initial pressure drop | < 0.02 MPa at rated flow |
| Replacement DPD | 0.07–0.10 MPa |
| Operating temperature | ≤ 66°C |
| Seal material | EPDM / NBR O-ring |
| Cross-reference housings | BEA standard inline compressed-air filter series |
Cross Reference
This element cross-references standard BEA replacement precision filter cartridges and is interchangeable with equivalent aftermarket coalescing filters. Provide WIRES with your BEA housing model or OEM part number for an exact dimensional and grade match.
Applications
- Italian/European compressor stations and air-treatment installations
- Food and beverage compressed-air systems with product contact
- Pharmaceutical and cosmetics process-air filtration
- Pneumatic conveying and packaging machinery
- Laser cutting, plasma cutting, and welding assist air
- General industrial point-of-use compressed-air filtration
About WIRES Filters
With over 28 years of specialized manufacturing experience, WIRES is a trusted OEM/ODM supplier of industrial filter elements and filtration systems for global B2B markets. Every filter is produced under strict quality control at our ISO-certified production facility, using premium raw materials sourced from trusted global suppliers. We offer full customization — including custom dimensions, media grades, end-cap configurations, and cross-reference matching to all major OEM brands. Our products are exported worldwide to power plants, chemical processing plants, food and beverage facilities, pharmaceutical manufacturers, marine operators, and hydraulic equipment users. Contact our engineering team today to request a quote or discuss your custom filtration requirements.
