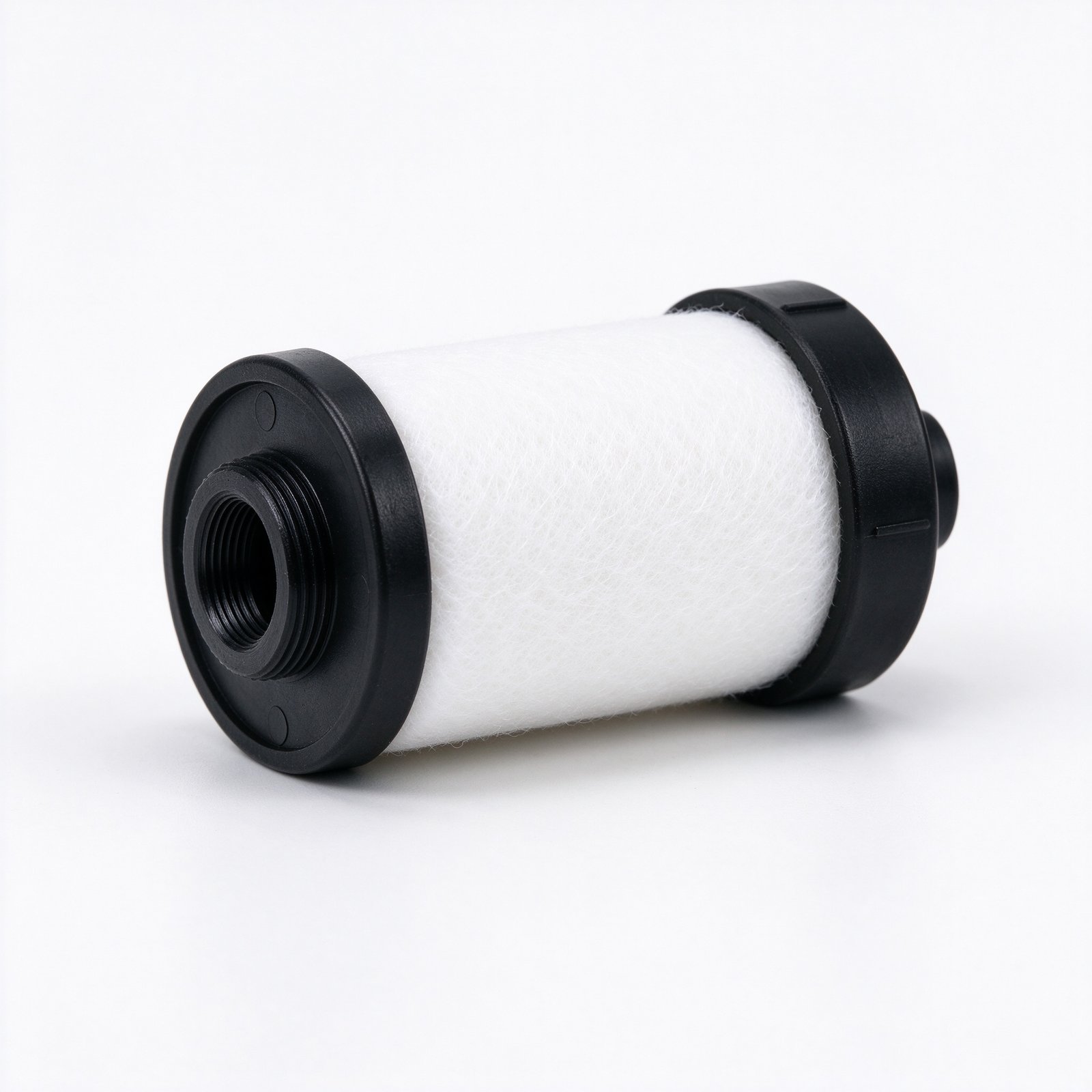

Hiross Replacement Compressed Air Precision Filter Element
The WIRES Hiross replacement compressed air precision filter element is a direct-fit coalescing cartridge engineered for Hiross inline compressed-air filter housings. It removes liquid water, oil aerosol, and solid particles from compressed air to meet the purity classes defined by ISO 8573-1. Built from multi-layer micro-glass-fiber media, the cartridge coalesces fine oil and water droplets so they drain to the bottom of the housing, while the inner support cage keeps the media stable under rated flow. The result is clean, dry compressed air suitable for sensitive production equipment, pneumatic controls, and process-air applications.
Key Features
- Direct cross-reference fit for Hiross compressed-air filter housings across the standard flow range.
- Multi-layer micro-glass-fiber coalescing media achieves oil aerosol carryover as low as 0.01 mg/m³.
- Stainless-steel inner support core and molded polymer end caps resist compressor lubricants and condensate.
- Integrated NBR / EPDM O-rings ensure zero bypass and leak-free sealing during cartridge swap-out.
- Optimized pleat area keeps initial pressure drop low and doubles service interval versus generic media.
Specifications
| Filtration principle | Depth coalescing / particulate removal |
| Particulate rating | 0.01–1.0 µm (grade-dependent) |
| Oil aerosol carryover | ≤ 0.01 mg/m³ (coalescing grade) |
| Initial pressure drop | < 0.02 MPa (0.2 bar) at rated flow |
| Replacement DPD | 0.07–0.10 MPa |
| Operating temperature | ≤ 66°C (standard grade) |
| Seal material | NBR / EPDM O-ring |
| Cross-reference housings | Hiross standard inline compressed-air filter series |
Cross Reference
This element cross-references standard Hiross precision filter cartridges and is interchangeable with equivalent aftermarket coalescing filters. Send WIRES your Hiross housing model or OEM part number for an exact dimensional and grade match.
Applications
- Pneumatic control instrumentation and process automation systems
- Food and beverage packaging, filling, and capping equipment
- Pharmaceutical and clean-room compressed-air networks
- Paint spraying and powder-coating booths
- Electronics and semiconductor assembly compressed air
- General industrial compressed-air point-of-use filtration
