Description

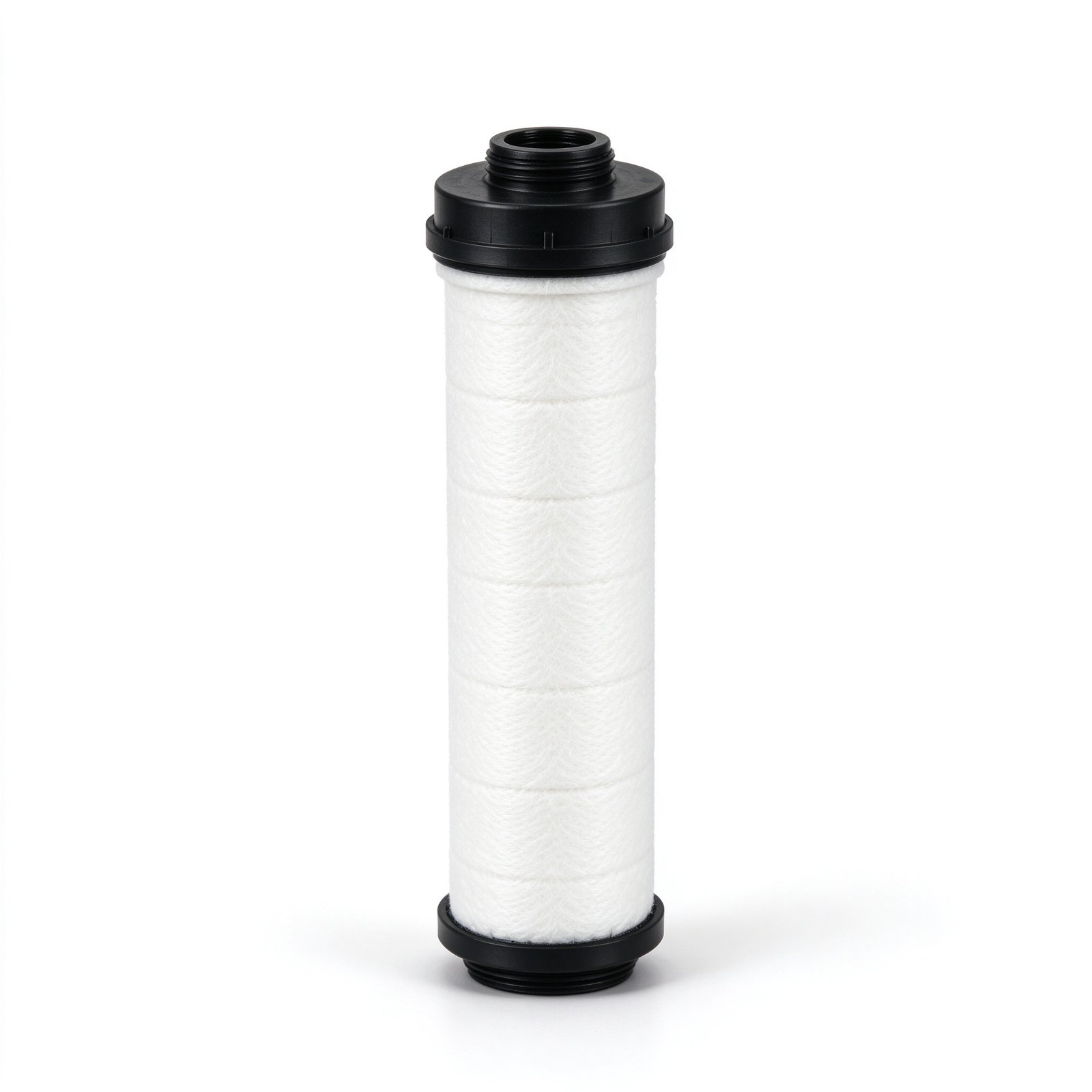

Compressed Air Precision Filter Element Replacement
WIRES manufactures precision compressed air filter elements designed as direct replacements for the world’s leading compressed air purification brands. These high-efficiency elements remove oil aerosol, water droplets, and solid particulates from compressed air and inert gas systems, delivering clean, dry air critical for pharmaceutical, food, electronics, and pneumatic process applications. Our elements meet or exceed OEM performance ratings across the full range of particulate, coalescing, and vapor adsorption grades.
Key Features
- Piston-style sealing: Precision piston seal ensures positive sealing against the filter housing bore, preventing unfiltered air bypass.
- Stainless steel reinforcement: Internal stainless steel support core provides structural strength and corrosion resistance for long service life.
- Low airflow resistance: Precision pleated matrix composite fiber media maximizes effective filtration area while maintaining low differential pressure.
- Welded construction: Seam-welded end caps and coated closed sleeves resist oil-based and acid-based chemical corrosion.
- Temperature capability: Rated for continuous operation up to 80°C (some series up to +100°C).
Specifications
| Product Type | Compressed Air Precision Filter Element |
| Filtration Media | Matrix Composite Fiber / Glass Fiber |
| Filtration Rating | 0.01 μm – 3 μm (grade dependent) |
| Working Temperature | -10°C to +100°C |
| Nominal Pressure | 0.6 – 0.8 MPa (up to 1.0 / 4.0 MPa on request) |
| Inlet Temperature | < 80°C |
| Residual Oil Content | As low as 0.003 ppmW (H-grade) |
| Sealing Type | Piston Seal / Stainless Steel Reinforced |
Cross Reference
WIRES precision filter elements are direct replacements for these OEM brands:
- Hankison (汉克森) — E1/E3/E5/E7/E9 series coalescing and particulate filters
- Domnick Hunter (多明尼克) — K/KA/KS/P series compressed air filters
- Hiross (海沃斯) — Q/P/S/C/T series precision filters
- Ultrafilter (超滤) — FF/SMF/SMF/AK series
- Parker (派克) — P3KF/P3KFB series compressed air filters
- Atlas Copco (阿特拉斯) — DD/PD/QD/UD series in-line filters
- JiaMei (嘉美) — C/T/A/H/F series precision filters
- BEA (贝尔) — H/F/M/S series coalescing filters
Applications
- Food and beverage compressed air systems (contact and non-contact)
- Pharmaceutical and medical air purification
- Electronics and semiconductor manufacturing process air
- Paint and powder coating spray air supply
- Pneumatic automation and instrumentation air
- Petrochemical refinery and natural gas polishing
About WIRES Filters
With over 28 years of specialized manufacturing experience, WIRES is a trusted OEM/ODM supplier of industrial filter elements and filtration systems for global B2B markets. Every filter is produced under strict quality control at our ISO-certified production facility, using premium raw materials sourced from trusted global suppliers. We offer full customization — including custom dimensions, media grades, end-cap configurations, and cross-reference matching to all major OEM brands. Our products are exported worldwide to power plants, chemical processing plants, food and beverage facilities, pharmaceutical manufacturers, marine operators, and hydraulic equipment users. Contact our engineering team today to request a quote or discuss your custom filtration requirements.
