Description

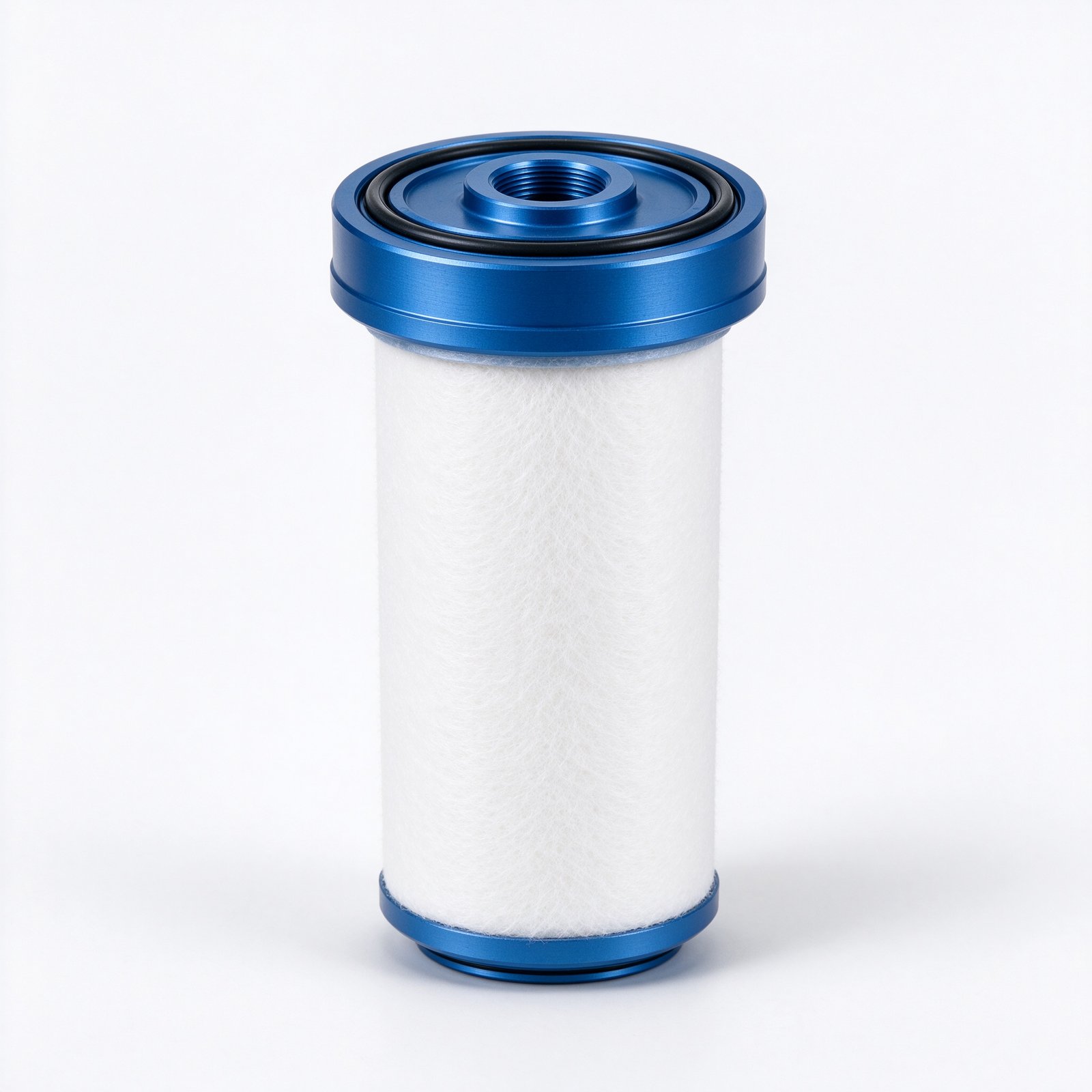

Ultrafilter Replacement Compressed Air Precision Filter Element
The WIRES Ultrafilter replacement precision filter element is engineered as a direct-fit cartridge for the Ultrafilter LF, FF, MF, SMF, AK, and SK series compressed-air filter housings. Using multi-layer borosilicate micro-glass-fiber media, the element covers the full purity chain from general coalescing filtration (removing water, oil, and particulate) to high-efficiency oil-vapor adsorption. Color-coded end caps help maintenance teams identify each grade at a glance, and the precision-machined interface with NBR O-rings ensures a leak-free, no-bypass installation.
Key Features
- Direct-fit replacement for Ultrafilter LF, FF, MF, SMF, AK, and SK series compressed-air housings.
- Borosilicate micro-glass-fiber media delivers 99.999% efficiency at 0.01 µm in coalescing grades.
- Activated-carbon media options available for oil-vapor and odor removal (adsorbing grades).
- Color-coded anodized end caps prevent grade mismatch during cartridge change-out.
- Low initial pressure drop (< 0.02 MPa) and high dirt-holding capacity extend service intervals.
Specifications
| Media options | Borosilicate micro-glass fiber / activated carbon |
| Coalescing efficiency | 99.999% @ 0.01 µm |
| Oil carryover (coalescing) | ≤ 0.01 mg/m³ |
| Oil vapor residual (carbon grade) | ≤ 0.003 mg/m³ |
| Initial pressure drop | < 0.02 MPa at rated flow |
| Replacement DPD | 0.07 MPa (coalescing) / 0.03 MPa (carbon) |
| Operating temperature | ≤ 66°C |
| Cross-reference series | Ultrafilter LF, FF, MF, SMF, AK, SK |
Cross Reference
The element cross-references standard Ultrafilter replacement cartridges across the LF, FF, MF, SMF, AK, and SK range. WIRES can match your exact housing model, flow rate, and required ISO 8573-1 purity class.
Applications
- Food and beverage compressed-air systems contacting product or packaging
- Pharmaceutical, cosmetics, and clean-room air preparation
- Laser cutting and plasma cutting assist-air filtration
- Paint spraying, powder coating, and surface finishing
- Electronics assembly and instrument-air networks
- Industrial gas and process-air point-of-use filters
