Bag Filter Housing Element

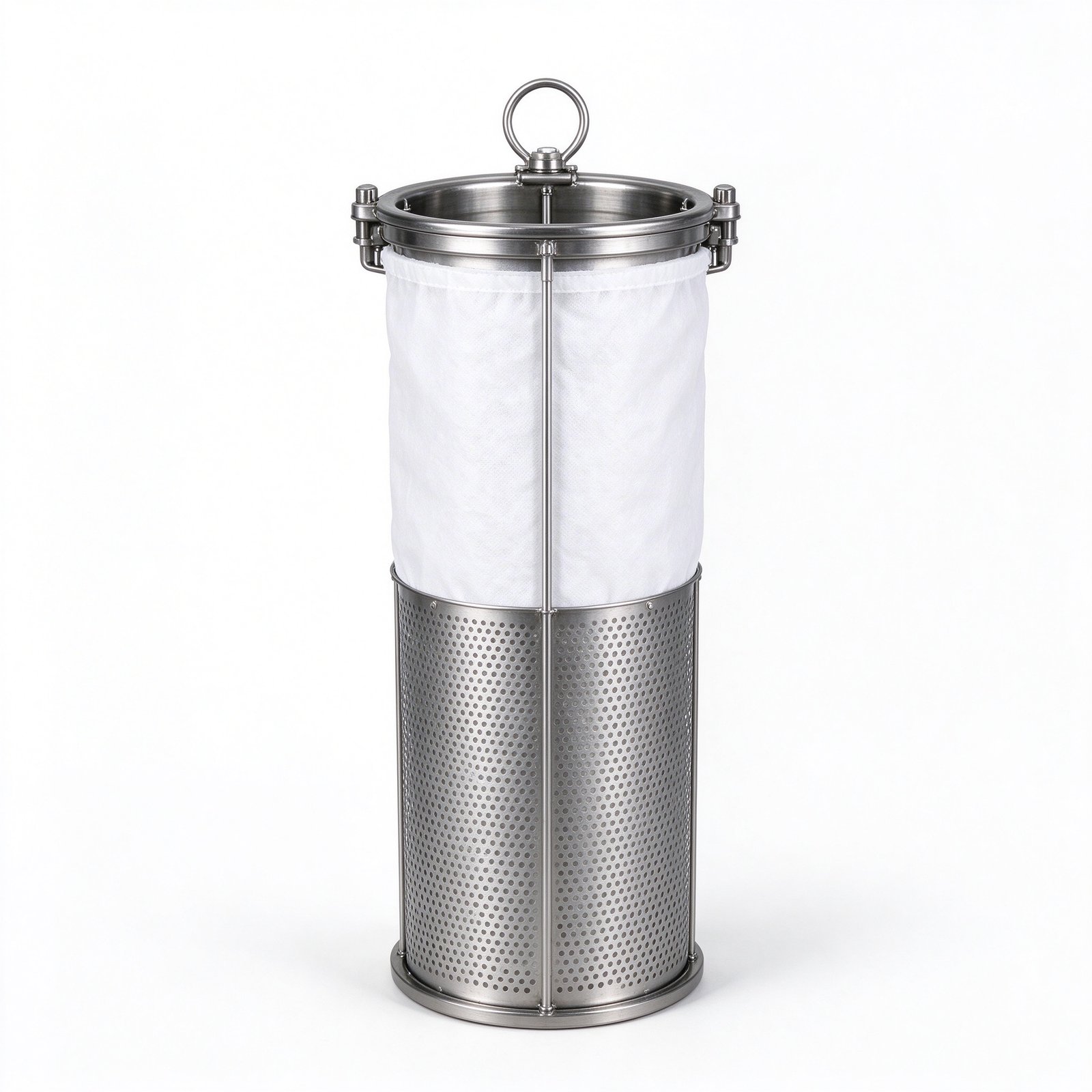

The WIRES Bag Filter Housing Element is a complete drop-in replacement assembly consisting of a perforated stainless steel support basket and a sewn filter bag sleeve, designed for use in standard multi-bag and single-bag filter housings in liquid and gas process service. The perforated SS304/316L basket mechanically supports the filter bag under full line pressure, while the felt bag captures suspended solids. Bag media — polypropylene, polyester, nylon, or PTFE — is selected for chemical compatibility and required micron rating. The assembly installs quickly from the housing lid and can be changed without tools. Flange, threaded, or bolted housing designs from standard process-filter vendors are fully interchangeable.
Key Features
- Complete assembly — perforated SS basket support plus sewn filter bag, ready to drop into any standard #1/#2/#3 bag housing.
- Corrosion-resistant basket — 304 or 316L perforated stainless with lifting-handle ring, rated for full housing pressure.
- Wide media and micron range — PP, polyester, nylon, PTFE felt from 1 µm to 200 µm absolute-rated.
- Consistent fit — dimensions, neck diameter, and O-ring/neck seal match standard bag housing vendors.
- Cost-effective maintenance — replaceable felt sleeve extends basket service life and lowers operating cost.
Specifications
| Bag size | #1 (180×430 mm), #2 (180×810 mm), #3 (800/900 mm) — custom |
| Support basket | Perforated SS304 / SS316L, 2-3 mm hole pattern |
| Filter media | Polypropylene (PP), polyester (PE), nylon, PTFE felt |
| Micron rating | 1, 3, 5, 10, 25, 50, 100, 200 µm |
| Flow per bag | 5-20 m³/h (depending on viscosity) |
| Working pressure | Up to 1.0 MPa housing rating |
| Temperature | PP ≤ 90 °C; polyester ≤ 130 °C; PTFE ≤ 200 °C |
| Neck seal | Double-o-ring / hot-melt sealed collar |
Cross Reference: Standard #1/#2/#3 bag housings from Eaton, Hayward, Shelco, Filterite, and custom stainless process filter vessels; cross-reference on request.
Applications
- Process water, cooling water, and wastewater bag filtration
- Chemical and solvent liquid clarification
- Food & beverage, edible oil, and syrup filtration
- Paint, coating, and resin pigment removal
- Compressed gas and natural gas bulk solid protection upstream of coalescers
- Pulp & paper and plating bath filtration
