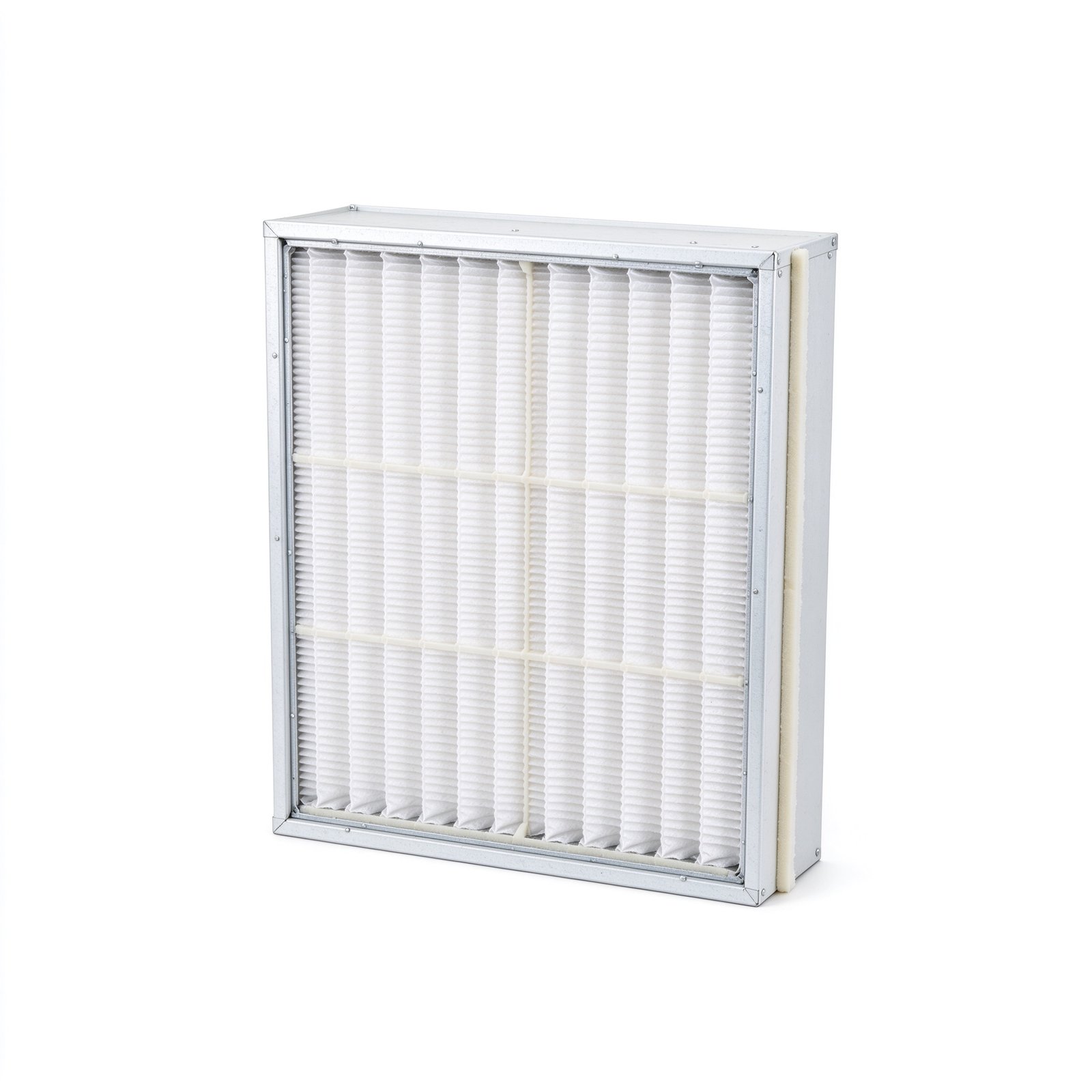

HEPA and Medium Efficiency Box Air Filter
The WIRES HEPA and Medium Efficiency Box Air Filter is a rigid separator-style deep-pleated filter designed for final-stage and intermediate filtration in cleanrooms, operating theaters, pharmaceutical filling lines, electronics assembly, and industrial ventilation systems. Mini-pleat or separator-style glassfiber media packs are sealed into a galvanized sheet-steel or stainless steel casing with continuous polyurethane gasketing, eliminating bypass. Filters are manufactured to EN1822 and individually scan-tested on request, with efficiencies from F8/F9 medium-efficiency up to H13 and H14 HEPA. The low-resistance design maintains stable airflow while protecting process air quality.
Key Features
- Full efficiency range — F8, F9 medium efficiency up to H13, H14 HEPA per EN1822.
- Deep-pleated glassfiber media — micro-glassfiber with hot-melt separators provides high dust capacity and consistent efficiency.
- Rigid sealed housing — galvanized steel or stainless frame with continuous PU gasket, zero bypass.
- Low initial resistance — optimized pleat geometry cuts fan energy and extends filter life.
- Individually tested — factory DOP/PAO scan test available, with test certificates supplied.
Specifications
| Efficiency (EN1822) | F8, F9, H13, H14 |
| Filter media | Micro glassfiber paper, deep-pleated |
| Separator | Hot-melt glue / aluminum foil separator |
| Frame | Galvanized steel / stainless steel / MDF |
| Standard size | 610x610x292 mm (custom sizes on request) |
| Rated air flow | 1,000-2,000 m³/h |
| Initial resistance | 120-250 Pa (class dependent) |
| Final resistance | 400-600 Pa |
| Temperature resistance | 70 °C continuous (up to 250 °C high-temp option) |
Cross Reference: Replacement HEPA/medium filters for Camfil, AAF Flanders, MayAir, Novapak, and cleanroom HVAC modules; custom sizes against housing drawing.
Applications
- Pharmaceutical cleanrooms and operating theater ventilation
- Semiconductor and electronics manufacturing air handling
- Hospital isolation rooms and biosafety cabinet supply air
- Food & beverage packaging area clean air
- Industrial painting and powder-coating final filtration
- Laboratory and research facility ventilation
