Description

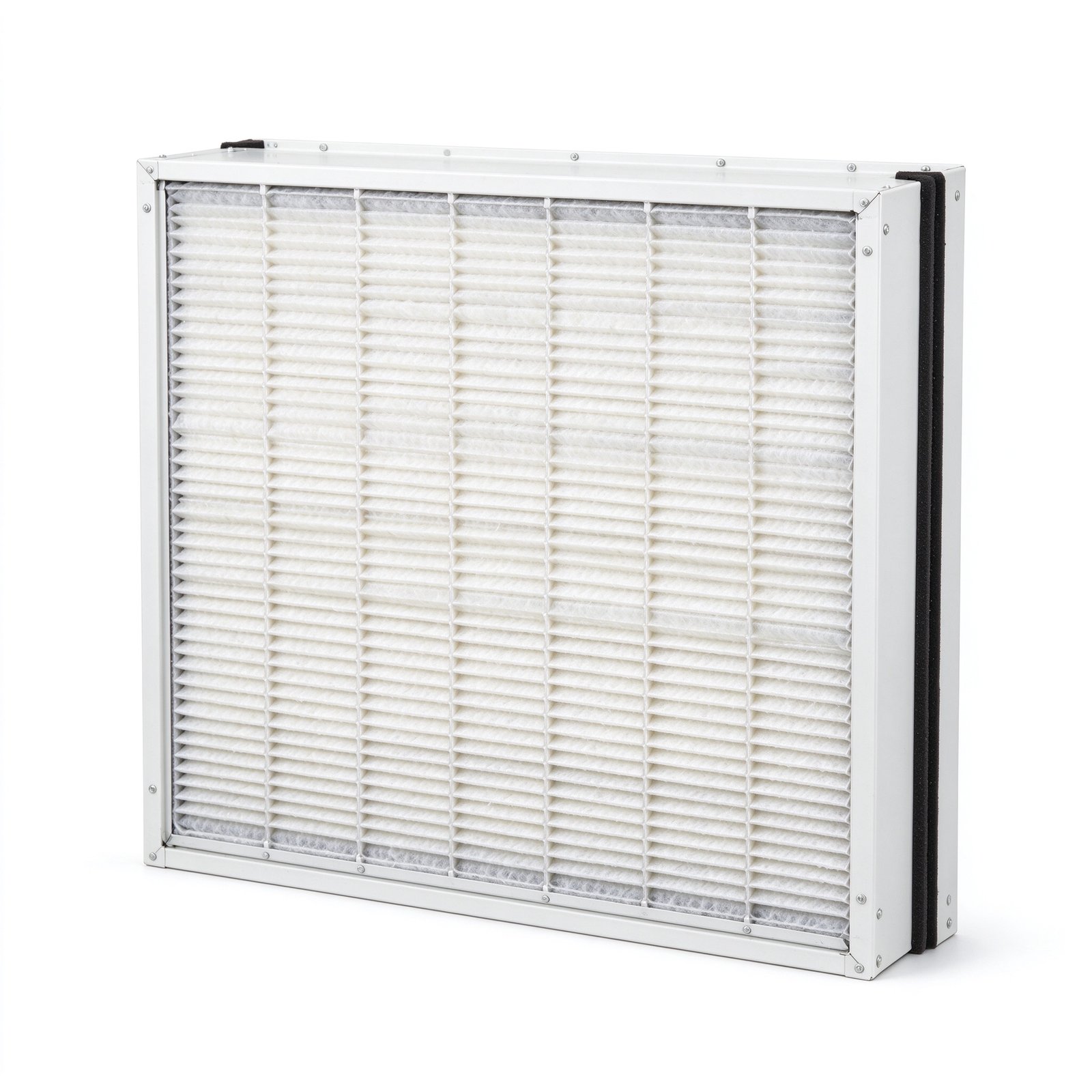

Plate Type Panel Air Filter
The WIRES Plate Air Filter is a disposable panel-type dry filter designed for coarse and medium pre-filtration of ambient air in HVAC systems, clean-rooms make-up air handlers, gas turbine intake houses, and large compressor air-inlet systems. The pleated media pack is sealed into a rigid galvanized sheet-steel or aluminum frame with polyurethane adhesive that eliminates bypass. A reinforced expanded-metal support grid on the clean-air side prevents the media from bulging under high face velocity. Standard efficiencies range from G3 to F8 per EN779, with optional activated-carbon layers for odor control. These panel filters protect downstream HEPA stages and compressor elements by capturing lint, dust, pollen, and atmospheric particulate before it reaches the fine filtration stage.
Key Features
- Rigid, bypass-free frame — galvanized steel or aluminum cassette with polyurethane-sealed media pack prevents air bypass.
- Pleated media pack — synthetic non-woven or glassfiber media pleated on high-loft separators maximizes effective filtration area and dust capacity.
- Low initial resistance — low-pressure-drop design reduces fan energy consumption over the service interval.
- Wide efficiency range — G3, G4, M5, M6, F7, F8 available to match pre-filter or final-stage requirements.
- Standard and custom sizes — 595x595x46, 595x285x46, 610x610x46 mm plus any custom cassette size.
Specifications
| Filter class (EN779) | G3, G4, M5, M6, F7, F8 |
| Filter media | Synthetic non-woven / glassfiber multi-layer |
| Frame material | Galvanized steel or aluminum |
| Standard size | 595x595x46 mm (other sizes on request) |
| Rated air flow | 2,000-3,500 m³/h per panel |
| Initial resistance | 30-60 Pa (class dependent) |
| Final resistance | 250-400 Pa |
| Temperature resistance | Up to 70 °C continuous |
| Optional | Activated carbon layer, moisture-resistant media |
Cross Reference: Replacement panel filters for Camfil,AAF Flanders, MayAir, Novapak, and generic HVAC cassette housings; custom dimensions against your housing drawing.
Applications
- Commercial building HVAC make-up and recirculation air filtration
- Gas turbine and large compressor intake pre-filtration
- Clean-room and electronics factory pre-filter stages
- Food & beverage and pharmaceutical air handling units
- Painting booth and powder-coating supply air filtration
- Data center and telecom shelter cooling air intake
About WIRES Filters
With over 28 years of specialized manufacturing experience, WIRES is a trusted OEM/ODM supplier of industrial filter elements and filtration systems for global B2B markets. Every filter is produced under strict quality control at our ISO-certified production facility, using premium raw materials sourced from trusted global suppliers. We offer full customization — including custom dimensions, media grades, end-cap configurations, and cross-reference matching to all major OEM brands. Our products are exported worldwide to power plants, chemical processing plants, food and beverage facilities, pharmaceutical manufacturers, marine operators, and hydraulic equipment users. Contact our engineering team today to request a quote or discuss your custom filtration requirements.
