Description

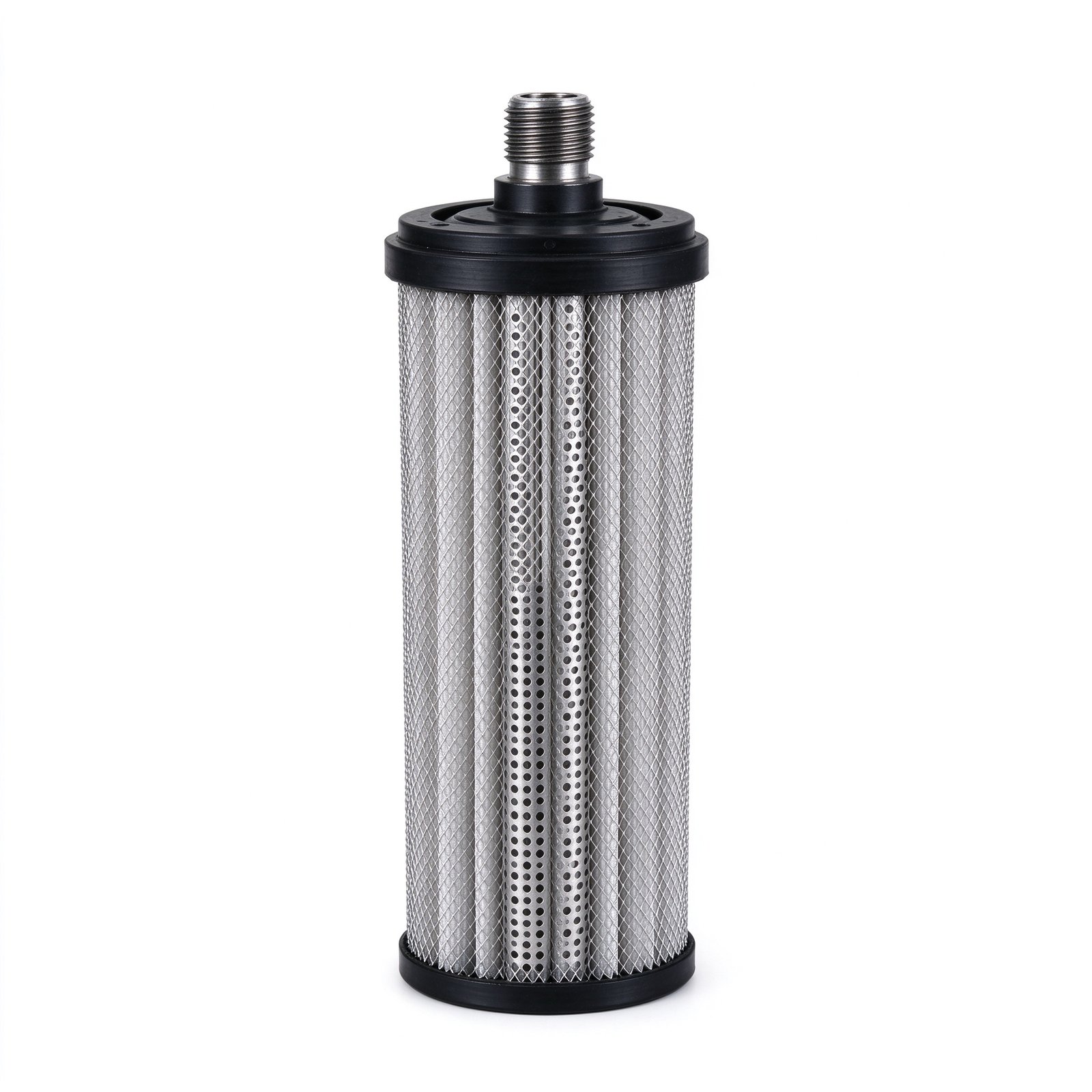

Dry Gas Seal Filter Cartridge
The WIRES Dry Gas Seal Filter Cartridge is a high-performance, high-cleanliness element designed to protect the mechanical dry gas seals of centrifugal compressors, steam turbines, and gas expanders. Installed in the seal-gas supply and vent systems, it removes solid particulates, liquids, and compressor oil carry-over before the buffer gas reaches the seal faces. Manufactured with pleated stainless steel woven mesh and sintered fiber media supported by a perforated inner core, the cartridge delivers absolute-rated filtration with a controlled, uniform pore structure that prevents seal-face scoring and extends seal service life. Every element is factory integrity-tested and available with custom end-cap geometries, connection types, and micron ratings to match all major seal-gas panel OEMs.
Key Features
- Absolute-rated pleated media — 304/316L stainless steel woven mesh and sintered fiber provide 99.9% removal at the rated micron size for critical seal-gas service.
- High mechanical strength — perforated galvanized or stainless inner core supports the pleat pack against pressure surges and backflow without collapse.
- Low extractables, high cleanliness — media and end-cap adhesives are cleaned to meet gas-seal particulate requirements, preventing seal-face contamination.
- Temperature and corrosion resistance — suitable for dry natural gas, nitrogen, and instrument gas from -30 °C up to 200 °C with Viton or silicone seals.
- Full OEM interchangeability — dimensions, O-ring grooves, and male/female connections matched to John Crane, EagleBurgmann, Flowserve, and Rotorcom seal-gas housings.
Specifications
| Filtration accuracy | 3, 5, 10, 20 µm (absolute-rated) |
| Filter media | Pleated SS304/SS316 woven wire mesh + sintered fiber |
| Support core | Perforated stainless / galvanized steel, inner diameter 30-60 mm |
| Outer diameter | 50-150 mm (custom on request) |
| Element length | 200-600 mm |
| End caps | Black epoxy / stainless steel, male thread or flange connection |
| Seal material | Buna-N, Viton, silicone (per gas compatibility) |
| Working pressure | 1.0-4.0 MPa (rated burst > 3x) |
| Temperature range | -30 °C to +200 °C |
| Initial pressure drop | < 0.02 MPa at rated flow |
Cross Reference: John Crane 48PX/8BS, EagleBurgmann ROC/RW, Flowserve seal-gas housings, Rotorcom, and equivalent seal-gas coalescer/filter housings. Custom dimensions produced against your OEM drawing.
Applications
- Centrifugal compressor dry gas seal supply and vent filters
- Steam turbine and gas expander seal-gas conditioning
- Natural gas, nitrogen, and instrument gas clean-up at compressor stations
- Refinery and petrochemical seal gas booster systems
- LNG and offshore platform compressor seal protection
- OEM seal-gas skid aftermarket replacement cartridges
About WIRES Filters
With over 28 years of specialized manufacturing experience, WIRES is a trusted OEM/ODM supplier of industrial filter elements and filtration systems for global B2B markets. Every filter is produced under strict quality control at our ISO-certified production facility, using premium raw materials sourced from trusted global suppliers. We offer full customization — including custom dimensions, media grades, end-cap configurations, and cross-reference matching to all major OEM brands. Our products are exported worldwide to power plants, chemical processing plants, food and beverage facilities, pharmaceutical manufacturers, marine operators, and hydraulic equipment users. Contact our engineering team today to request a quote or discuss your custom filtration requirements.
