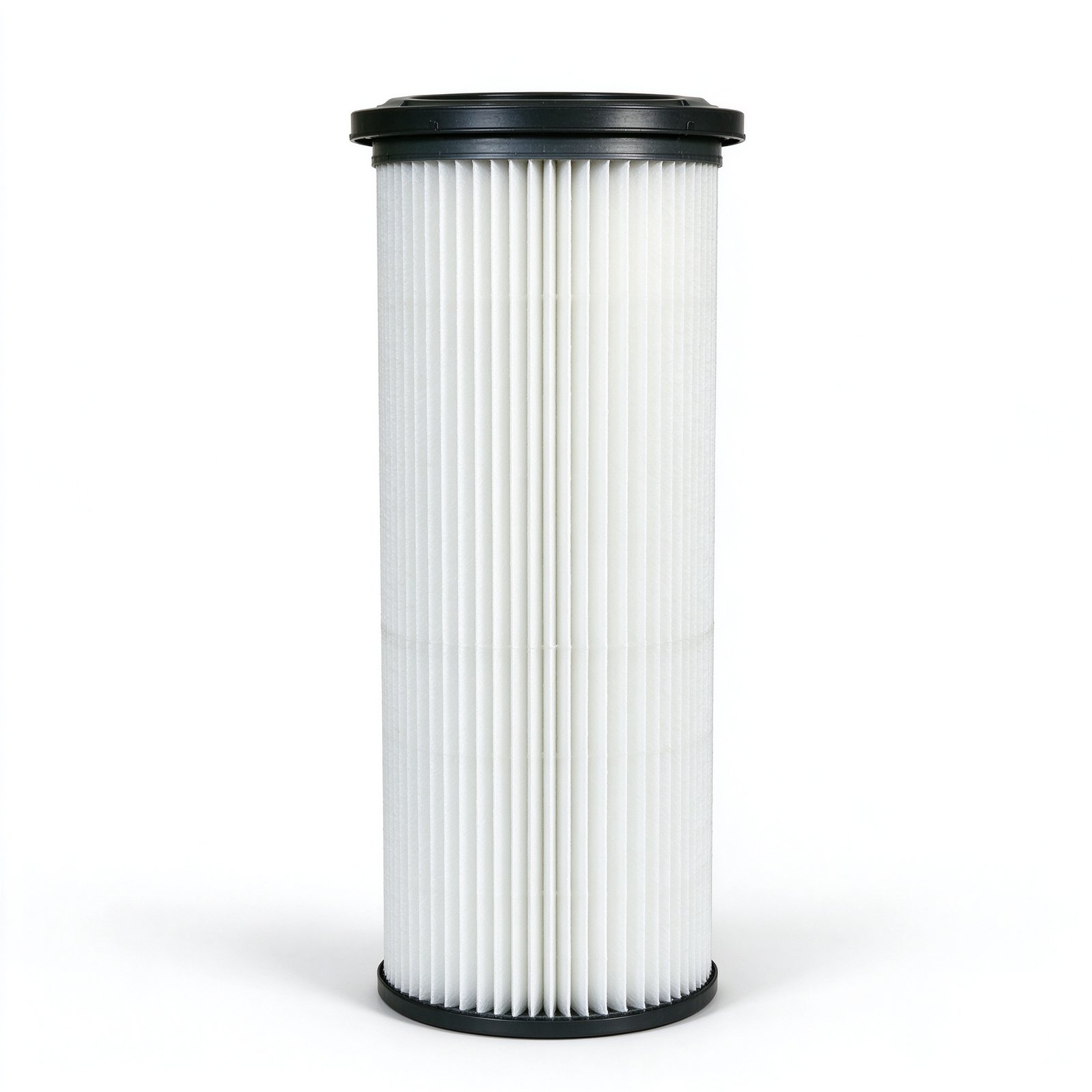

Pleated Dust Collection Air Filter Cartridge
The WIRES pleated dust collection filter cartridge is a high-efficiency cartridge designed for industrial dust extraction and ambient air filtration. Constructed from spunbond polyester media with a galvanized or polyurethane end-cap and diamond-shaped inner support, this cartridge delivers excellent dust-holding capacity and reliable performance in demanding industrial dust collection systems. The wide pleat design maximizes effective filtration area for extended service life.
Key Features
- High-efficiency polyester media: Imported fiber-polyester composite media provides excellent filtration efficiency and dust release during pulse cleaning.
- Wide pleat design: Optimized pleat geometry increases effective filtration area, lowering initial resistance and extending cartridge service life.
- Corrosion-resistant end caps: Galvanized steel end caps and diamond-shaped expanded metal inner core resist rust and provide high open area.
- Positive seal: Dedicated polyurethane gasket ensures a tight seal in the filter housing bore, preventing dust bypass.
- Temperature stability: Rated for continuous operation up to 80°C with appropriate media treatment.
Specifications
| Product Type | Pleated Dust Collection Filter Cartridge |
| Filter Media | Polyester Fiber (Spunbond) |
| Media Thickness | 0.75 mm |
| Media Weight | 240 g/m² |
| Air Permeability | 220 m³/m²·hr |
| Filtration Rating | 3 μm – 5 μm |
| Initial Resistance | 290 Pa |
| Max Temperature | 80°C |
| End Caps | Galvanized Steel / Polyurethane |
| Inner Support | Diamond-shaped Expanded Metal |
Cross Reference
WIRES dust collection cartridges are available in a wide range of diameters, heights, and top/bottom configurations to match most major cartridge dust collector housings. Common mounting options include: top flange with bolt holes, bayonet fit, threaded connection, and open/closed bottom designs. Custom dimensions and media treatments (antistatic, PTFE membrane, oil repellent) are available on request. Contact us with your existing cartridge dimensions for a direct replacement.
Applications
- Powder coating and powder spray booth extraction
- Sandblasting and abrasive blast cabinet dust collection
- Environmental dust collection and air pollution control
- Hardware and metal powder collection systems
- Gas turbine and compressor intake air filtration
- Cement, woodworking, pharmaceutical, and food processing dust extraction
About WIRES Filters
With over 28 years of specialized manufacturing experience, WIRES is a trusted OEM/ODM supplier of industrial filter elements and filtration systems for global B2B markets. Every filter is produced under strict quality control at our ISO-certified production facility, using premium raw materials sourced from trusted global suppliers. We offer full customization — including custom dimensions, media grades, end-cap configurations, and cross-reference matching to all major OEM brands. Our products are exported worldwide to power plants, chemical processing plants, food and beverage facilities, pharmaceutical manufacturers, marine operators, and hydraulic equipment users. Contact our engineering team today to request a quote or discuss your custom filtration requirements.
